|Adjusting:||Worm Gearing||Running Speed:||Max.80m/min|
|Cutting Saw:||Friction Saw Cutting||Welding Type:||High Frequency Welding|
|Max.Thickness For Square Pipe:||0.8-3.0mm||Pipe Diameter:||21 - 63mm|
stainless tube mills,
slitting line machine
ERW tube mill / ERW pipe mill
Basic information of stainless steel pipe for making machine:

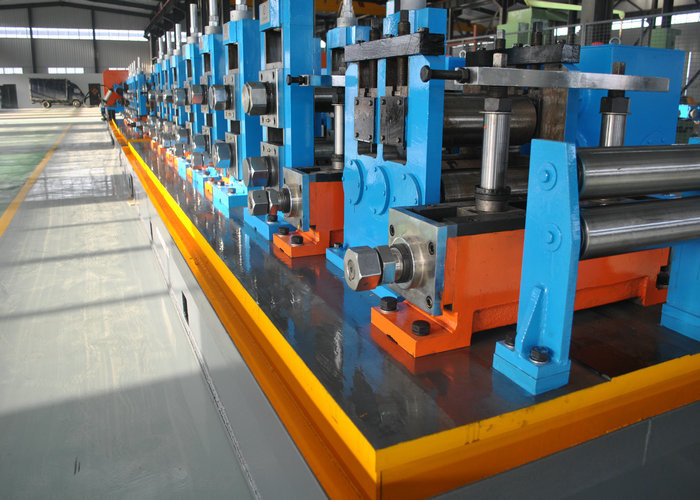

welded pipe machine adopts advanced welding technology and offers dual welding arcs, increased speed, higher deposition, superior mechanical properties and quality. HG50, HG 79 high frequency welded pipe machine is widely applied for producing tubes for heat exchanger, refrigerator, frame of car, bicycle, fitness equipment, furniture, cooling machine, petrol transmission, construction industry, etc. This high frequency welded pipe making machine or welded pipe mill composes of a complete set of pipe forming machine, rotating capstan, decoiler, straightening machine, shearing,accumulator, tube mill section, flying saw and packaging device. Now we have four types machines which are divided by wall thickness and diameter.
ERW tube mill / ERW pipe mill ERW tube mill / ERW pipe mill Zhongtuo stainless steel pipe for making machinefeatures:
1.Take continuous production,there is no need to change the rollers in rough-forming section.
2.The quality mill is reliable in the welding seam technology.
3.The pipe produced by welded pipe mill covers most ss pipes which are currently used by build
4.Straight seam welded pipe mill shares outstanding advantages such as low production cost and highproduction capacity.
Working flow in chart:
coil inner diameter:450-550mm coil max width:300mm 3.max carrying capacity: 1500kgUsage:It is used to support the steel coil and uncoil it in a turnable way. Passive uncoil pulled by roll forming system
Usage:Put the raw material(steel plate) through the beach to manufacture and
process,it can guarantee that the products are neat, parallel and everything is uniformity.
Please refer to the equipment regulation to know the function of locate angle iron.
Main roller system:
1.Shaft material & rollers material & shaft diameter45# steel adjustable treatment; 45# steel, polished, plate of chrome 0.05mm; 60mm 2. power: 101kw 3. Transport; Motor; chain drive 4. Forming speed; 20m/min Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Material: blade, puncher and mold material: Cr12 steel with quenched treated 60-62
Cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor. It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12 quenched Power supply : hydraulic power Components:It contains one set of blade, one hydraulic tank and one cutter machine
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
