Product Details:
Payment & Shipping Terms:
|
| Adjusting: | Worm Gearing | Running Speed: | Max.100m/min |
|---|---|---|---|
| Cutting Saw: | Friction Saw Cutting | Welding Type: | High Frequency Welding |
| Max.Thickness For Square Pipe: | 0.8-3.0mm | Pipe Diameter: | 21 - 63mm |
| Color: | Blue | Host Weight: | 10-15t |
| High Light: | erw tube mill,stainless tube mills |
||

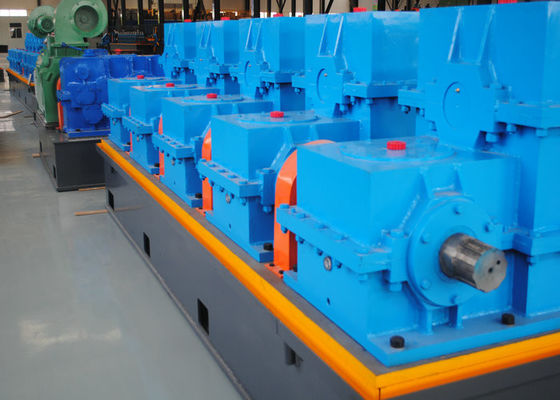

High Speed Efficiency Capacity ERW Pipe Mill Round & Square Pipe Tube Mill Line
Basic information of steel tube manufacturing machine:
Welded pipe machine adopts advanced welding technology and offers dual welding arcs, increased speed, higher deposition, superior mechanical properties and quality. HG50,HG60, HG79 high frequency welded pipe machine is widely applied for producing tubes for heat exchanger, refrigerator, frame of car, bicycle, fitness equipment, furniture, cooling machine, petrol transmission, construction industry, etc. This high frequency welded pipe making machine or welded pipe mill composes of a complete set of pipe forming machine, rotating capstan, decoiler, straightening machine, shearing,accumulator, tube mill section, flying saw and packaging device. Now we have many types of machines, divided by wall thickness and diameter.
ERW Tube Mill Other Model:
| Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
| HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
| HG32 | 10-32MM | 1.4-1.5MM | 120 |
| HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
| HG76 | 25-76MM | 1-4MM | 30-100 |
| HG89 | 32-89MM | 1-4.5MM | 30-80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
| HG165 | 60-165MM | 3-7MM | 30-50 |
| HG219 | 114-219MM | 4-8MM | 20-40 |
| HG273 | 114-273MM | 4-10MM | 15-30 |
| HG325 | 165-325MM | 4-10MM | 10-30 |
| HG426 | 165-426MM | 4-12.7MM | 8-25 |
| HG508 | 219-508MM | 4-16MM | 8-20 |
Equipment advantages:
1.Take continuous production,there is no need to change the rollers in rough-forming section.
2.The quality mill is reliable in the welding seam technology.
3.The pipe produced by welded pipe mill covers most ss pipes which are currently used by build
construction.
4.Straight seam welded pipe mill shares outstanding advantages such as low production cost and highproduction capacity.
Working flow in chart:
Raw material (steel coil) → decoiling→ shearing and welding→ accumulator → non-power leveling →forming milling →high frequency welding →de-burr frame→ cooling unit→ sizing unit →rough straightening → fixed length cutting →run out table
Our Services
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
