| Adjusting: | Worm Gearing | Worm Gearing: | Max.80m/min |
|---|---|---|---|
| Cutting Saw: | Friction Saw Cutting | Welding Type: | High Frequency Welding |
| Max.Thickness For Square Pipe: | 0.8-3.0mm | Pipe Diameter: | 21 - 63mm |
| High Light: | erw tube mill,stainless tube mills |
||

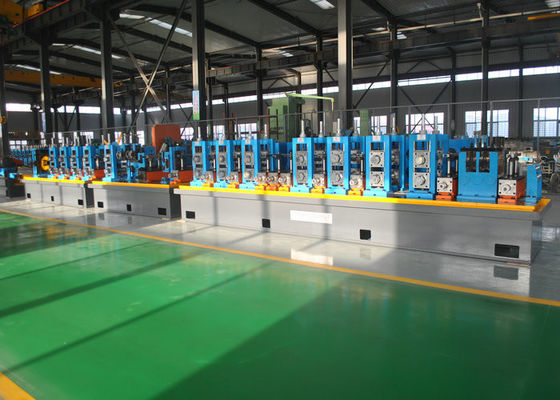

Straight seam high frequency erw pipe making machine
INTRODUCTION:
High-frequency ERW straight seam pipe making machine, for the whole prodcution line, at first, the coil is loaded at the uncoiler, then but-welding the ends of coil, delivering to accumulator. After accumulator, the strip is pulled from accumulator contiousely by fixed speed, is formed to opened-pipe at forming machine, then welded by High frequency welder, de-burred, cooled, shaped and sized as round pipe and rectangluar&square pipe at the sizing area. Then the sized pipe is straightened after Turkey-head device and then cutted to fixed length by flying saw. At last, the fixed pipe is delivered from run-out table and inspected at the table.
This line could produce the round pipe, the rectangular and square pipe by material of cold/hot-rolled coil etc. It could be used at the metallurgy, construction, transportation, machinery, automobile industry. Adopting “W” forming type, it could make much more reasonbale force, and much more perfect forming shape at each stand etc.
PRODUCTION PROCESS:
MAIN EQUIPMENT:
Uncoiler
Shear & end welder
Accumulator
Forming and sizing machine
Welding, deburring machine, cooling system
HF solid-state welder
Computer Numerical Control cuting saw
Straightening machine
Runway and operate table
Electrical control system
Mould
Our Services
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
