High Precision Full Automatic ERW Pipe Mill , Worm Gearing Max.80m/min

Certification
China Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd. certification
China Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd. certification
Customer Reviews
Thanks for your pipe mill,very good quality and best after-slae service!

—— Mr.Gaber Ibrahim

Dear Amy, Nice day. We have received your mill machine,very good,thanks

—— Eng.Sandeep Sharma

Hi Ms.Amy, Greetings! Thanks for everything when visiting you,very nice factory and good quality machine. Hopefully we can be good patners in future.

—— Ddwin Jakobs

I'm Online Chat Now

High Precision Full Automatic ERW Pipe Mill , Worm Gearing Max.80m/min

High Precision Full Automatic ERW Pipe Mill , Worm Gearing Max.80m/min

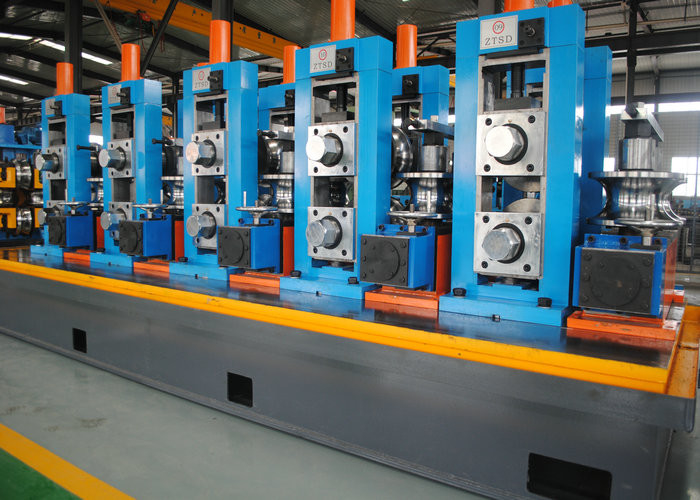

High Precision Full Automatic ERW Pipe Mill , Worm Gearing Max.80m/min High Precision Full Automatic ERW Pipe Mill , Worm Gearing Max.80m/min High Precision Full Automatic ERW Pipe Mill , Worm Gearing Max.80m/min

Large Image :  High Precision Full Automatic ERW Pipe Mill , Worm Gearing Max.80m/min

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG60
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiated
Packaging Details: Export waterproof and Seaworthy packing.
Delivery Time: 2.5 months
Supply Ability: 50 Sets/Year
Detailed Product Description
Adjusting: Worm Gearing Worm Gearing: Max.80m/min
Cutting Saw: Friction Saw Cutting Welding Type: High Frequency Welding
Max.Thickness For Square Pipe: 0.8-3.0mm Pipe Diameter: 21 - 63mm
High Light:

erw tube mill

,

slitting line machine

High frequency high precision full automatic ERW Pipe mill line machine This line is used to manufacture welded steel pipe



Summary
This equipment is specially used for producingΦ20-Φ80mm, δ1-4.0mm high-frequency straight seam welded pipe and corresponding square pipe (17*17-62*62mm,1.2-3.0mm). The composition of equipment is from uncoiler to fixed length cutting saw. Rolling speed can be according to suitable range of pipe diameter and wall thickness.
A. Applicable material
1 Raw material: Low-carbon steel,

2 Thickness of steel strip: 1.0-3.5mm
3 The width of steel strip: 60-240mm
4 I.D. of steel coil: Φ450-Φ550mm
5 O.D. of steel coil: Φ800-Φ1200mm
6 Maximum weight coil: 2500kgs
B .Dimension range of processing steel pipe
1 O.D of pipe: Φ20-Φ80mm
2 Wall thickness: 1.0-3.5mm (square pipe :1.2-3.0mm)
3 Length: 4-8m
4 Milling speed: 60-70m/min
5 High-frequency equipment power: 250 KW (Solid state)
6 Voltage:380V/440V,50HZ
C.Main components
1 Uncoiler: 1 set
2 Shearing and butt-welder: 1 set
3 Accumulator: 1 set
4 Forming. Welding &sizing unit: 1 set
5 Computer-controlled tracking cutting saw: 1 set
6 Run-out table: 1 set
7 Solid-state high-frequency welder: 1 set



Product advantage:

  1. High precision
    between level roller jumps 0.01,between frame and slide clearance ≤0.02, frame vertical degree ≤0.05, each frame parallel degree ≤0.1,steel pipe diameter and roundness error≤0.08
  2. Use Japanese technology to make foreign clients requirment who need the high accuracy requirement
  3. Schedulable use the worm gear and worm adjustment, the adjustment precision is high, energy accurately
  4. The scraping scar can be adjusted 3D adjustment , scraper can along the steel circle ±20 ° rotation.
  5. Round become square is Turkish head push square, can reduce mold weight, forming stable, uniform R Angle.
  6. Level up shaft increase nylon damping block, reduce the impact to the shaft and bearing.

Production Process

Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding→ Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse



Specifications:

1. Raw Material

1 Mateairal applcaition Hot or cold rolled steel strips, galvanzied steel strips
2 Material grade Low-carbon steel, low alloy steel: δs≤345Mpa
3 ID of the steel strips Φ508-Φ610mm
4 OD of the steel strips Φ800-Φ2000mm
5 Coiler weight Max.4000kg





















2. Production Range:

Round Pipe 32- 140mm Thickness: 1.0-5.0mm
Square Pipe 25*25- 110*110mm Thickness: 1.0-4.0mm
Rectangular Pipe 20*30 - 90*120mm Thickness: 1.0-4.0mm



3. H.F. Welder: GGP300Kw Solid State High Frequency Welder

4. Line Spees: Max.70m/min

5. Tube Length: 6-12m

6. Cutting Accuracy: ±3mm

7. Electric installed capacity: appro. 500KW

8. Size of whole line: about 80X9m



Our Services

1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.

2.) Warranty Team

One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.

3.) We supply the pre-sell and after-sell service.

pre-sell service: workshop design, and production output design

after-sell service: installation and training, and the skilled engineer for working.

4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.

5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.

6.) We will be responsible for the loading and shipping
