Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel,stainless Steel | Coil OD: | <2000mm |
|---|---|---|---|
| Type: | Carbon Steel Slitting Machine | Special Require: | Can Design According To The Customer |
| Steel Thickness: | 0.5-4.0mm | Product Speed: | Max 120m/min |
| Highlight: | slitting line machine,sheet metal slitter machine |
||

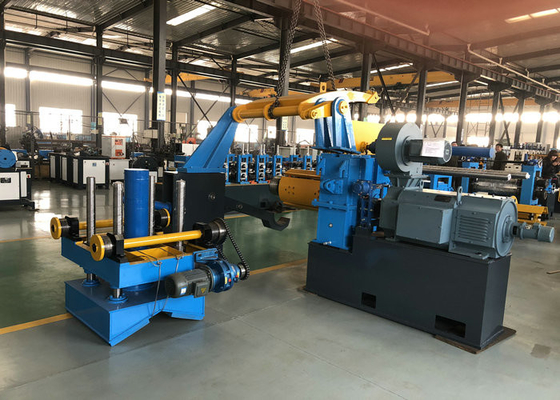

Slitting Line Machine Profile:
Slitting line machine mainly composed of uncoiler,feeder,slitter and recoiler.its function is to slit a wide coil to stated width strips coil along with the length direction which can be used for milling,welding pipe,cold bend forming,stamping as billet.At same time,changing different material blade can slit various metal coils.
Product Process:

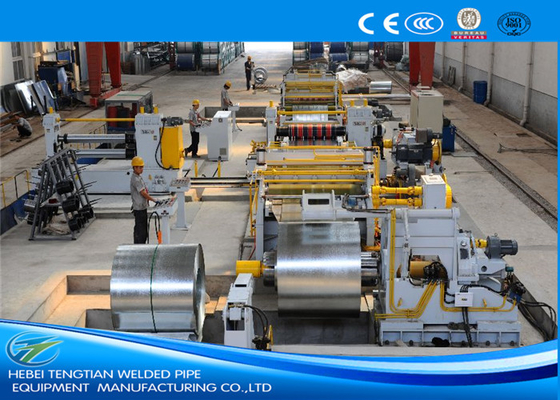

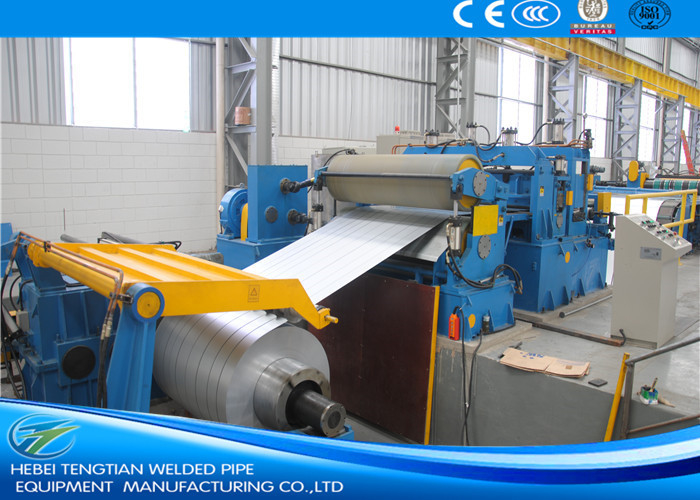

Loading coil car→Uncoiler→Straightener device→Pinch roll&leveler & hydraulic shearer →Loop pit →Side guide →Slitter →Transition platform & scrap winder →Loop pit →Tension station→Recoiler→Unloading coil car
Metal steel slitting machine:
The three critical determinants of slitting cutter slitts line include on Slitting machine :
•The work piece material thickness
•Which type of material to be slit, for example, if stainless steel, we have to use special material cutting blade.
•The tolerances that must be held while slitting.
Now we also have one quite simply slitting machine, you need to make it work manuully. This set of slitting machine
is suit for low amount of work. And the price for this machine is quite cheap.
Specification
|
1.Raw Material (if the material is stainless steel, please tell in advance) |
1). Material : carbon steel and others 2). The thickness of the material:0.4mm-6mm. 3).Width:10mm,12mm,15mm,20mm,25mm,30mm. 40mm,50mm,60mm 4),Input width:600-1600mm |
| 2. Working process | Decoiler ----flatting and cutting---slitting-----flatting and collecting |

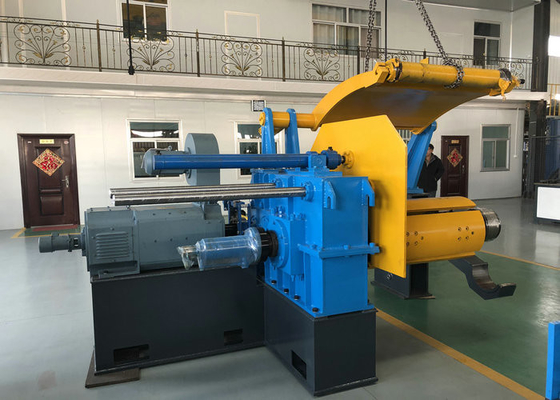

| 3.Hydraulic Decoiler with car | 1). The inner size:450--610mm 2). The Max width:1600mm 3). The capacity :15T 20Ton or more |
| 4. Flatting and Cutting System |
1). 2 shafts for feeding coil.9 shafts for flatting 2).material of flatting:42CrMo heat treated 50-52. 3).hydraulic system.2 sets cutting blade 4).width of cutting:600mm--1220mm. 5).the material of blade mould:Gr12MoV 6).power :22KW Motor with ZQ650 Reducer |
| 5.slitting syste |
1). The width range :200--1300mm 2). The precious of the width:±1mm 3). The speed of slitting:25m/min 4). The width can be change. 5). Material of the slitting: Cr12MoV. Hardness of slitting blade:HRC5860. 6).slitting:2~3mm 6 lines. 7).quantity of blades:10 sets . 8).Width of side scrap:3-15mm 9).The precious of side scrap:±0.5mm 10).Quantity of side scrap:2 strips 11).Slitting burr: 12).Power of the slitting:37KW,1000r/min,with ZQ750 Reducer. |
| 6. Control System |
1). Screen:3.2inch button screen 2). PLC:Delta |
| 7. Electrical collecting machine with car |
1). Material inner : 550-650mm 2). Max Coil width:1500mm 3). Carrying capacity:5T 4). Automatic relax or collect 5). Power:22KW |
This model just for you reference,the product range and thickness is adjustable,we have ourselves engineer team,can design the machine according to the customer special require.
Our Services
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
