|Material:||Carbon Steel,stainless Steel||Coil OD:||<2000mm|
|Type:||Carbon Steel Slitting Machine||Special Require:||Can Design According To The Customer|
|Steel Thickness:||0.5-4.0mm||Product Speed:||Max 120m/min|
sheet metal slitter machine,
strip slitting machine
High Quality silicon steel coil slitting machine
The silicon steel slitting machine is special equipment used for the silicon steel processing. It is necassarey machine in the transformer industry. The machine is suitable for 0.23-0.5mm silicon steel 1250mm width. It can slit the coils into narrow strips as per request. Whole line adopts PLC controlling VF speed ajusting, touch screen operating. All the electric elements and bearing and pneumatic parts are International famous brand products.
1. One set coil car for coil loading

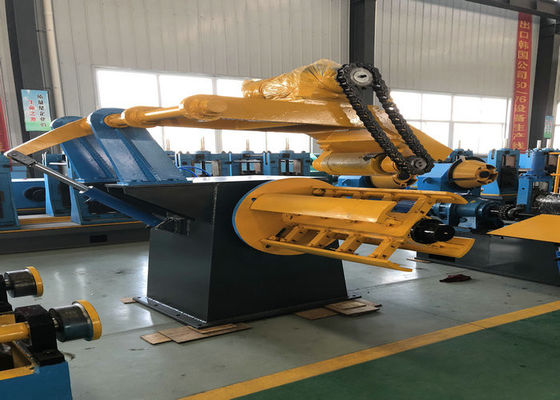

2. One set hydraulic DC powered decoiler(speedadjustable)
3. One set coil sheet feeding system
4. Two sets roll tables
5. One set slitter(VF speed controlling)
6. Two sets buffer pit moveable roll tables
8. One set tensioning system
9. One set hydraulic DC powered recoiler(speedadjustable)
10. One set coil car for discharging
11. One set controlling cabinet
Main Technical Data
1. Slitting width: 600-1250mm
2. Slitting thickness: 0.23-0.5mm
3. Slitting strip width: min. 40mm
4. Work speed: 0-60m/min adjustable
5. Max capacity of decoiler & recoiler: 5tons
6. Power supply: as per customer’s request
Main Elements Origin
|1||DC motor||Jiangsu Wangpai Z4 motor|
|4||Pneumatic elements||Airtac Taiwan|
|7||Human-computer interface||Siemens German|
Slitting Line Machine Profile:
Slitting line machine mainly composed of uncoiler,feeder,slitter and recoiler.its function is to slit a wide coil to stated width strips coil along with the length direction which can be used for milling,welding pipe,cold bend forming,stamping as billet.At same time,changing different material blade can slit various metal coils.
Loading coil car→Uncoiler→Straightener device→Pinch roll&leveler & hydraulic shearer →Loop pit →Side guide →Slitter →Transition platform & scrap winder →Loop pit →Tension station→Recoiler→Unloading coil car
This model just for you reference,the product range and thickness is adjustable,we have ourselves engineer team,can design the machine according to the customer special require.
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
