Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel,stainless Steel | Coil OD: | <2000mm |
|---|---|---|---|
| Type: | Carbon Steel Slitting Machine | Special Require: | Can Design According To The Customer |
| Steel Thickness: | 0.5-4.0mm | Product Speed: | Max 120m/min |
| Width Of Finish: | >60mm | Weight Of The Coil: | 30T |
| Highlight: | sheet metal slitter machine,strip slitting machine |
||
Quick Details
Place of Origin:Hebei, China (Mainland)
Brand Name:SJ
Model Number:SJ1600*4
After-sales Service Provided:Engineers available to service machinery overseas
Name:steel slitting machine
Type:Pipe Cutting Machine
Application:Mainly use for stainless steel strip/ tape/Copper etc
Certification:ISO9001:2015
Working width:400-1250mm
Thickness(mm):0.3-3.0
Number of slitting:3-20
Coil weight:10-20
Rated speed:0-150kw
Rated power:250
Slitting Line Machine Profile:
Slitting line machine mainly composed of uncoiler,feeder,slitter and recoiler.its function is to slit a wide coil to stated width strips coil along with the length direction which can be used for milling,welding pipe,cold bend forming,stamping as billet.At same time,changing different material blade can slit various metal coils.
Product Process:
Loading coil car→Uncoiler→Straightener device→Pinch roll&leveler & hydraulic shearer →Loop pit →Side guide →Slitter →Transition platform & scrap winder →Loop pit →Tension station→Recoiler→Unloading coil car
Details of the machine:
1.Application: Mainly use for slitting of stainless steel strip/ tape, carbon steel strip, copper, etc...
2.Function: A slitting line can do uncoiling, slitting and recoiling works.it usually works not only for the steel cutting industry, but more commonly for the pipe making industry. A lot of pipe production lines, longitudinal or spiral weld pipe line, start with a slitting line to produce coils with requested width. Our slitting lines, with delicate andadvanced design, can fit various sizes of steel coils and can be easily adjusted to cut coils into needed width.
3.Process flow :Feed – uncoiling – pinching and leveling – rotary shear – scrap reeling – loop – tensioning – coiling - unloading

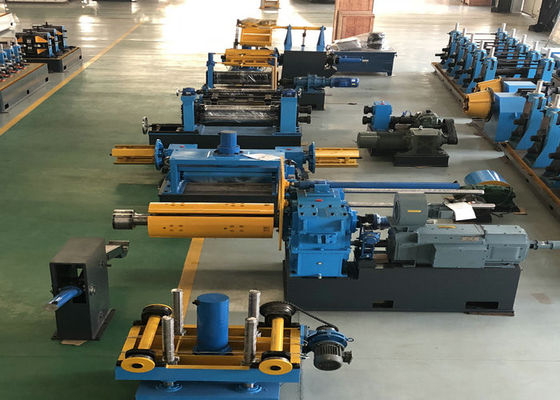

4.Structure:
1.cart for uncoiler
2.Single side/ double side uncoiler (support arm stand for single side uncoiler)
3.Leveling/ leveling + shearing stand
4. Loop bridge
5.Side guide stand
6. Single slitting knife/ double slitting knife stand
7. Loop bridge and scrap winder
8. Tension pad stand
9.Recoiler
10.Coil cart for recoiler
11.Electric control system
The Basic Parameters:
| material | carbon steel,stainless steel,galvanized steel |
| material thickness | 0.5-4.0mm |
| material width | 900-1600mm |
| coil ID | Ø508/610MM |
| Coil OD | <2000mm |
| Coil weight | Max 30Ton |
Other Model Of Slitting Line
| Model | steel thickness | steel width | steel coil weight |
| 3*1600mm | 0.5-3.0mm | 900-1600mm | 30 Ton |
| 4*1600mm | 0.5-4.0mm | 900-1600mm | 30 Ton |
| 6*1600mm | 1-6mm | 900-1600mm | 30 Ton |
| 8*2000mm | 2-8mm | 900-2000mm | 35 Ton |
| 10*2200mm | 3-10mm | 900-2200mm | 35 Ton |
| 12*2200mm | 3-12mm | 900-2200mm | 35 Ton |
| 16*2500mm | 4-16mm | 900-2500mm | 35 Ton |
| 20*2500mm | 6-20mm | 900-2500mm | 35 Ton |
This model just for you reference,the product range and thickness is adjustable,we have ourselves engineer team,can design the machine according to the customer special require.
Our Services
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
