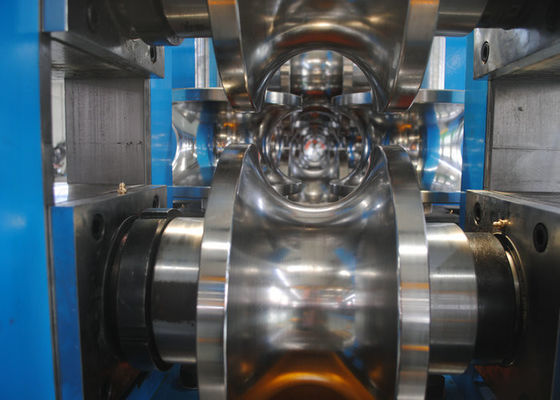

Steel ERW Straight Seam Pipe Production Line / Welded Tube Mill

Steel ERW Straight Seam Pipe Production Line / Welded Tube Mill
Steel ERW Straight Seam Pipe Production Line / Welded Tube Mill Steel ERW Straight Seam Pipe Production Line / Welded Tube Mill Steel ERW Straight Seam Pipe Production Line / Welded Tube Mill

Large Image :  Steel ERW Straight Seam Pipe Production Line / Welded Tube Mill

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG60
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiated
Packaging Details: Export waterproof and Seaworthy packing.
Delivery Time: 2.5 months
Payment Terms: L/C, T/T
Supply Ability: 50 Sets/Year
Detailed Product Description
High Light:

erw tube mill

,

slitting line machine

Steel ERW welding pipe mill and straight Seam welded pipe production line tube making line

Overview
Quick Details

Condition:

New

Type:

Pipe Production Line

Pipe Material:

Carbon Steel

Application:

Drain Pipe

Production Capacity:

100m/min

Place of Origin:

Hebei, China (Mainland)

Brand Name:

ZTZG, ZTZG Zhongtai

Model Number:

ERW89

Voltage:

380/440/220V

Power(W):

450kw

Dimension(L*W*H):

75x8m

Weight:

28t

Certification:

ISO9001:2008

Warranty:

1 Year

After-sales Service Provided:

Engineers available to service machinery overseas

color:

blue

I. Brief introduction:
89mm welded pipe production line is designed to produce welded pipes of 32mm-89mm in OD and 1mm-4.5mm in wall thickness, as well as corresponding square and rectangle tube.

II. Basic Technical Information:
1.Specification of pipes
Pipe OD: 32mm-89mm Thickness: 1mm-4.5mm
Square tube: 25mm×25mm 70mm×70mm, Thickness: 1mm-3.0mm
Length: 6 -12m Length Tolerance: ±3mm
2.Raw Material:
Material: Carbon steel coil(GB Q195-Q345); Alloy steel coil; API 5L X42-X80
3. Tube mill
Production Speed : 20-60m/min
Direction : left to right or right to left from operator`s side decided by customers.

III. The technical flow of the production line
Uncoiling→Shear & butt welding→Cage looping (Accumulating)→Forming →HFwelding→Removing & outsied Bead →Cooling→Sizing→Cutting off→Conveying →Downloading → Packing →Warehousing

IV. Makeup of tube mill line
1. Double-reel Mechanical Uncoiler
2. Shear & Butt Welder
3. Cage Loop(Accumulator)
4. Tube mill
5. Solid State H.F. welder
6. NC Flying Saw
7. Output Rollway
8. Rollers
Steel ERW Straight Seam Pipe Production Line / Welded Tube Mill 0Steel ERW Straight Seam Pipe Production Line / Welded Tube Mill 1

Our Services
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
