Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel,stainless Steel | Coil OD: | <2000mm |
|---|---|---|---|
| Product Speed: | Max 120m/min | Steel Thickness: | 0.5-4.0mm |
| Special Require: | Can Design According To The Customer | Type: | Carbon Steel Slitting Machine |
| High Light: | slitting line machine,sheet metal slitter machine |
||

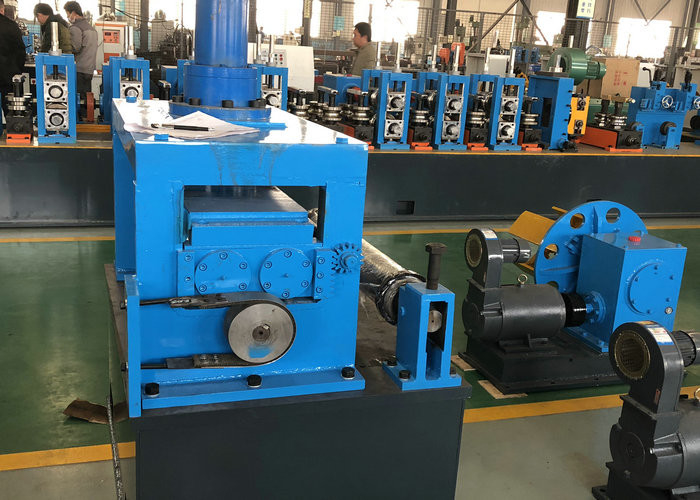

Slitting Line Machine Profile:
Slitting line machine mainly composed of uncoiler,feeder,slitter and recoiler.its function is to slit a wide coil to stated width strips coil along with the length direction which can be used for milling,welding pipe,cold bend forming,stamping as billet.At same time,changing different material blade can slit various metal coils.
1. Main specification of coil
| Item | Specification |
| Material | carbon steel Q235,Q345 |
| Thickness | 1~4mm |
| Width | 500~1350mm |
| Inner diameter | Φ508mm, Φ610mm, Φ760mm |
| Max.outer diameter | Φ2000mm |
| Max weight | 25000Kg |
2. Main machine process
Material loading car—double loading uncoiler—leading head, pressuring head,shoveling head—double roller pinch-shearing machine—Deviation correcting device—slitting—Waste steel coil coiling—Loop—Pre-segregation, tensioner—coiling—unloading cart-—hydraulic control—electrical control
3. Data delivery
The buyer provide unit operation, operation instruction, production line diagram,easily damaged parts diagram, hydraulic system schematic diagram and electric circuit diagram when delivering the goods.
4. Quality guarantee
The quality of the unit will be in accordance with relevant national standards for acceptance.
Other Model Of Slitting Line
| Model | steel thickness | steel width | steel coil weight |
| 3*1600mm | 0.5-3.0mm | 900-1600mm | 30 Ton |
| 4*1600mm | 0.5-4.0mm | 900-1600mm | 30 Ton |
| 6*1600mm | 1-6mm | 900-1600mm | 30 Ton |
| 8*2000mm | 2-8mm | 900-2000mm | 35 Ton |
| 10*2200mm | 3-10mm | 900-2200mm | 35 Ton |
| 12*2200mm | 3-12mm | 900-2200mm | 35 Ton |
| 16*2500mm | 4-16mm | 900-2500mm | 35 Ton |
| 20*2500mm | 6-20mm | 900-2500mm | 35 Ton |
This model just for you reference,the product range and thickness is adjustable,we have ourselves engineer team,can design the machine according to the customer special require.
Our Services
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
