Straight Seam High Frequency ERW Pipe Tube Mill With Computer-Controlled

Straight Seam High Frequency ERW Pipe Tube Mill With Computer-Controlled
Straight Seam High Frequency ERW Pipe Tube Mill With Computer-Controlled Straight Seam High Frequency ERW Pipe Tube Mill With Computer-Controlled

Large Image :  Straight Seam High Frequency ERW Pipe Tube Mill With Computer-Controlled

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE ISO
Model Number: HG325
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: packed in seaworthy material
Delivery Time: three month
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 set per year
Detailed Product Description
Certification: CE ISO Type Of Welding: High Frequency Welding
Pipe Thickness: 4.0-10.0mm Custom: Yes
Product Speed: Max 50m/min Material: Carbon Steel,stainless Steel,low Alloy Steel
High Light:

stainless tube mills

,

slitting line machine

Straight Seam High Frequency Erw Pipe Mill/Tube Mill



Summary
This equipment is specially used for producingΦ20-Φ80mm, δ1-4.0mm high-frequency straight seam welded pipe and corresponding square pipe (17*17-62*62mm,1.2-3.0mm). The composition of equipment is from uncoiler to fixed length cutting saw. Rolling speed can be according to suitable range of pipe diameter and wall thickness.
A. Applicable material
1 Raw material: Low-carbon steel,

2 Thickness of steel strip: 1.0-3.5mm
3 The width of steel strip: 60-240mm
4 I.D. of steel coil: Φ450-Φ550mm
5 O.D. of steel coil: Φ800-Φ1200mm
6 Maximum weight coil: 2500kgs
B .Dimension range of processing steel pipe
1 O.D of pipe: Φ20-Φ80mm
2 Wall thickness: 1.0-3.5mm (square pipe :1.2-3.0mm)
3 Length: 4-8m
4 Milling speed: 60-70m/min
5 High-frequency equipment power: 250 KW (Solid state)
6 Voltage:380V/440V,50HZ
C.Main components
1 Uncoiler: 1 set
2 Shearing and butt-welder: 1 set
3 Accumulator: 1 set
4 Forming. Welding &sizing unit: 1 set
5 Computer-controlled tracking cutting saw: 1 set
6 Run-out table: 1 set
7 Solid-state high-frequency welder: 1 set


The ERW pipe mill with high frequency solid welder,can product he round pipe,square pipe and

rectangular pipe in high speed,and also can product the L,T,Z shape pipe,reduce the cost of roller ensure the quality of the finish pipe.





Product Process:



material(steel coil)→uncoiler→shear and welder→horizontal(or cage) accumulator→forming mill→

HF soild welder→sizing mill→rounghly straightening(turkey head)→cut off machine→run out table

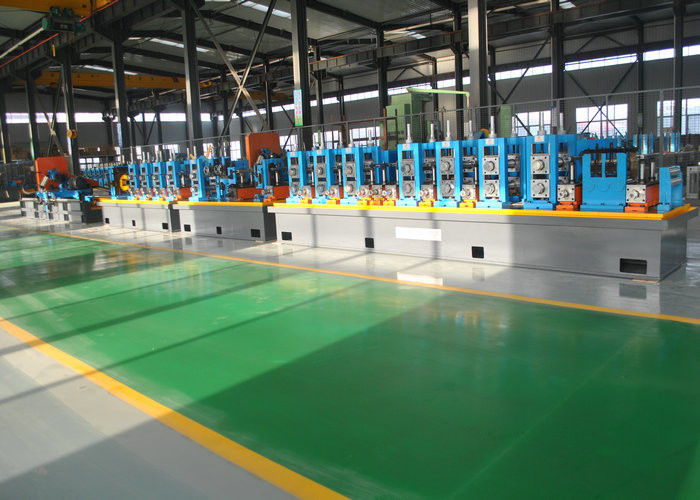

Straight Seam High Frequency ERW Pipe Tube Mill With Computer-Controlled 0



High‐frequency welded tube mill line is designed to produce round tube diameter of 25.4 – 114 mm, and wall thickness of 0.8 ‐4.0 mm. This line utilizes roll forming to process steel strip into various shapes. Using high frequency induction heating, this line is capable of producing section material of various diameters and sizes by squeezing weld seam together into closed shape. The application of advanced aperture technology, PLC automatic control system and British Eurasia Digital speed‐regulating unit ensure that the production line works reliably and operates and maintains easily.





ERW Tube Mill Other Model



Model Diameter Range Pipe Thickness Line Speed(m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20



Our Services

1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.

2.) Warranty Team

One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.

3.) We supply the pre-sell and after-sell service.

pre-sell service: workshop design, and production output design

after-sell service: installation and training, and the skilled engineer for working.

4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.

5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.

6.) We will be responsible for the loading and shipping
