Product Details:
Payment & Shipping Terms:
|
| Adjustment Type: | By Turbine Worm | Pipe Shape: | Round,square,rectangular |
|---|---|---|---|
| Pipe Diameter: | 25-76mm | Material: | HRC,CRC,Galvanised Steel |
| Mill Speed: | 30-100m/min | Welding Type: | High Frequency Welding |
| High Light: | pipe milling machine,industrial tube mills |
||

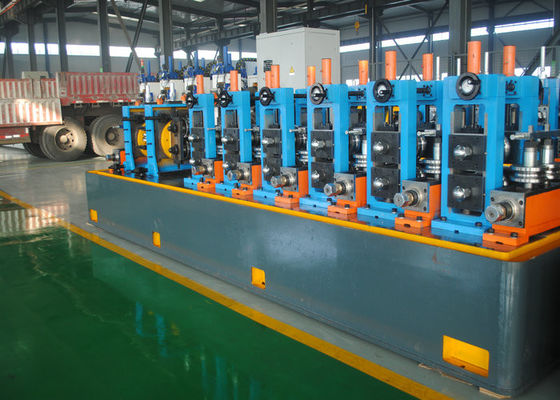

high quality high precision welding tube mill manufacturer in China
Straight welded pipe mills package Wiped Anti Rust Oil, Rollers and Shafters covered by waterproof film,Hydraulic station, PLC control Box, Spare parts and some small parts packed in plywood box. All Components Fixed by steel wire with Container.
Warranty
1). One year, and we will provide the technical support for the whole life.
2).Training: the buyer should charge of visa, return ticket, food and accommodation overseas
and USD50/person/day for salary.
3). Need one technicians
4).Training time: one week (contains the time of installation and adjustment)
Product Process:
material(steel coil)→uncoiler→shear and welder→horizontal(or cage) accumulator→forming mill→
HF soild welder→sizing mill→rounghly straightening(turkey head)→cut off machine→run out table
Tengtian stainless steel tube machine manufacturer rolling mill quality precision seamless steel pipe making line for tube mill features:
1.Take continuous production,there is no need to change the rollers in rough-forming section.
2.The quality mill is reliable in the welding seam technology.
3.The pipe produced by welded pipe mill covers most ss pipes which are currently used by build
construction.
4.Straight seam welded pipe mill shares outstanding advantages such as low production cost and high
production capacity.
1.Shaft material & rollers material & shaft diameter45# steel adjustable treatment; 45# steel, polished, plate of chrome 0.05mm; 60mm
2. power: 101kw
3. Transport; Motor; chain drive
4. Forming speed; 20m/min
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
ERW Tube Mill Other Model
| Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
| HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
| HG32 | 10-32MM | 1.4-1.5MM | 120 |
| HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
| HG76 | 25-76MM | 1-4MM | 30-100 |
| HG89 | 32-89MM | 1-4.5MM | 30-80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
| HG165 | 60-165MM | 3-7MM | 30-50 |
| HG219 | 114-219MM | 4-8MM | 20-40 |
| HG273 | 114-273MM | 4-10MM | 15-30 |
| HG325 | 165-325MM | 4-10MM | 10-30 |
| HG426 | 165-426MM | 4-12.7MM | 8-25 |
| HG508 | 219-508MM | 4-16MM | 8-20 |
Tengtian Tube Mill Co., Ltd. Is a collection of scientific research, production, sales and service as one of the high frequency welded pipe equipment and opening cold bend steel equipment professional manufacturers. Our company is specializing in the production of high-frequency welded pipe, slitting, opening of cold bend steel, stainless steel and other equipment unit of the enterprise, the company innovation based on introduction of Japan's advanced technology, product production, according to Japan's strict standards of manufacturing. Advanced configuration, stable quality, excellent performance, excellent market visibility and reputation, the product has reached the world's leading level.
The company has a strong technical ability, strong business ability, vibrant team. Through the unremitting efforts of all staff, in recent years the company has occupied most of the domestic market, and exported to Korea, Vietnam, Indonesia, South Africa, Kazakhstan and other dozens of countries and regions, from domestic and foreign customers.Product quality and service quality are the most important core competitiveness of the company. The company close to the customer, close to the market, zero distance, full range, wholehearted service ideas, to promote the products in the pre-sale, sale in the whole process of customer service, quality service, honesty, win-win for the purpose of scientific research, to create first-class products to meet your demand for investment, increase confidence for the establishment and development of you. To provide a reliable guarantee. It is the common mission of all Zhongtian employees to produce high quality products and exceed customer expectations.Look forward to working with your cooperation, let us treat each other sincerely ,hand in hand, create great.
Our Services
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
