High Frequency Carbon Steel Square Tube Mill 30-80m/min

Name: High Frequency Carbon Steel Square Tube Mill 30-80m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: LW200
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO
Model Number:	LW200

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO

Model Number:

LW200

Mill Name:

High Frequency Carbon Steel Welded Pipe Production Line Square Tube Mill

Type Of Welding:

High Frequency Welding

Weight:

>2T

Voltage:

220/380/415/420/440V

Application:

Energy Supply Pipe

Production Capacity:

30-80m/min

Special Require:

Can Design According To The Customer

Product Speed:

Max 80m/min

Highlight:

High Light

Highlight:

square pipe making machine

tube mill line

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

two months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

150set per year

Product Description

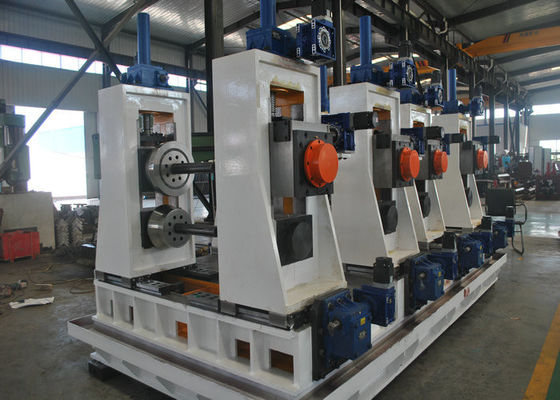

High Frequency Carbon Steel Welded Pipe Production Line Square Tube Mill

Product Attributes

Attribute	Value
Mill Name	High Frequency Carbon Steel Welded Pipe Production Line Square Tube Mill
Type of Welding	High frequency welding
Weight	>2T
Voltage	220/380/415/420/440V
Application	Energy Supply Pipe
Production Capacity	30-80m/min
Special Requirement	Can design according to the customer
Product Speed	Max 80m/min

Product Overview

This welded pipe production line is specially used for producing Φ19-Φ63.5mm, δ0.8-2.5mm high-frequency straight seam welded pipe and corresponding square pipe and special-shaped pipe (δ≤2.0mm). The equipment composition ranges from uncoiler to fixed length cutting saw. Rolling speed can be adjusted within suitable range of pipe diameter and wall thickness.

Applicable Material

Item	Specification
Hot or cold-rolled steel strip	As per GB700-88 or GB1591-88
Material	Low-carbon steel, low alloy steel δs≤345Mpa, δb≤610Mpa
The thickness of steel strip	0.8-2.5mm (As per GB708-88)
The width of steel strip	60-200mm
I.D. of steel coil	Φ450-Φ550mm
O.D. of steel coil	Φ800-Φ1200mm
Maximum weight coil	2500kg

Machine Features

Roller shaft diameter is big, amount is big, and material 42CrMo
Equipped with double motors for high efficiency
Tube making efficiency is high with good straightness
High reliability with low failure rate
Convenient operation
Computer saw adopts Shengyang brand, the best quality in domestic market
High frequency welder adopts the best brand in China

Application Tubes

Water pipe, Heating pipe, Low-pressure process pipeline, Low pressure fire fighting pipeline, Sewage Pipes, Steel Scaffolding Pipe, Wire and cable protection pipe, Structural support Steel Pipe, Industrial Steel Pipes, Decoration Pipe, Oil & Gas Pipes

Tengtian Tube Mill Co., Ltd. is a professional manufacturer specializing in high frequency welded pipe equipment and opening cold bend steel equipment. Our company integrates scientific research, production, sales and service. We specialize in the production of high-frequency welded pipe, slitting, opening of cold bend steel, stainless steel and other equipment. Our products are manufactured according to Japan's strict standards with advanced configuration, stable quality, and excellent performance.

With strong technical capability and business expertise, our products have occupied most of the domestic market and have been exported to Korea, Vietnam, Indonesia, South Africa, Kazakhstan and other countries. We are committed to providing high quality products and services to exceed customer expectations.

Our Services

Engineer dispatch for installation and worker training
One year quality guarantee with lifetime repair service
Comprehensive pre-sell and after-sell service including workshop design and production output design
Option for long-term engineer support (several months to 1 year) to improve output and reduce waste
Complete project design service for stainless steel/carbon steel pipe making
Responsible for loading and shipping
