High Efficiency Metal Pipe Welding Machine / Square Pipe Making Machine

High Efficiency Metal Pipe Welding Machine / Square Pipe Making Machine
High Efficiency Metal Pipe Welding Machine / Square Pipe Making Machine High Efficiency Metal Pipe Welding Machine / Square Pipe Making Machine High Efficiency Metal Pipe Welding Machine / Square Pipe Making Machine

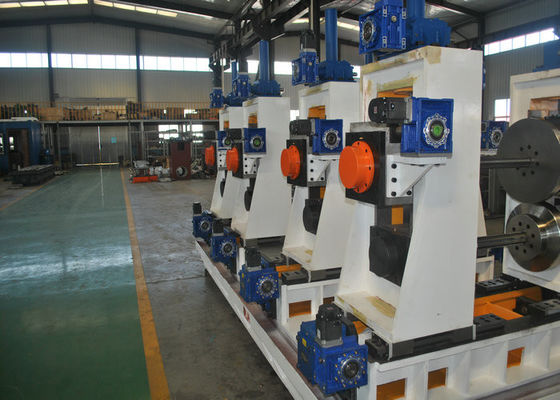

Large Image :  High Efficiency Metal Pipe Welding Machine / Square Pipe Making Machine

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE ISO
Model Number: LW200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: packed in seaworthy material
Delivery Time: two month
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50set per year
Detailed Product Description
Pipe Material: Carbon Steel Type Of Welding: High Frequency Welding
Weight: >2T Voltage: 220/380/415/420/440V
Application: Energy Supply Pipe Production Capacity: 1-10m/min
Special Require: Can Design According To The Customer Product Speed: Max 80m/min
High Light:

square pipe making machine


tube mill line

High efficiency - automatic high frequency metal pipewelding machine production line

High frequency welded pipe machine
Industry's first two-year free warranty, quality assurance
Passed the IS09001:2000 international standard certificatio

High-frequency welded pipe machine is a straight seam welded pipe machine, and other pipe machine is different from the place of its welding. High-frequency welded pipe machine is the use of high-frequency resistance vortex is the pipe hot melt and condensation to produce pipe. High-frequency welded pipe machine because of the welding speed, more and more people of all ages, such as oil pipe, natural gas and other large pipe are made using high-frequency welded pipe machine.


Product Description

High frequency steel tube welding machine


High frequency welding is also called high frequency induction heating. It is the use of 10~500KHz high frequency current flowing through the metal connecting surface resistance heat and applied (or not applying) pressure in order to reach a welding method of metal binding.


Commodity Mild steel tube welding production line
Brief Introduction

It is used to produce the welded steel pipe
Pipe OD: 30mm-89mm

Thickness: 1.2mm-4.0mm


Material Hot rolled or cold rolled low carbon steel
Equipment Make-up

1. Un-coiler
2. Vertical Loop

3. Molding Set

4. Flying Saw
5. Output Rollway
6. Solid High-frequency 60 kW+ DC Drive

Production Speed Belong to confidential information and will be known in the quotation list.
Electricity Input Power
Shaft Diameter
Direction(R/L) As customer’s request.
Remark we have own design teams, and can design the production line as customer’s request.

The characteristics of high frequency steel tube welding machine


1.High welding speed

2.Small welding heat influence area

3.The welding of the workpiece can not be cleaned.

4.Thin-walled tube can be welded

5.The metal pipe can be welded

6.Energy saving and environmental protection

7.Safe using

8.Long service life

9.High welding quality



Steel strips material Cold or Hot Rolled Low-carbon Steel
I.D Φ508mm
O.D ≤Φ1200mm
Width 22~55mm
Thickness 0.3-1.0mm
Maximum.weight ≤1T


Technological Process:

Decoiler(Rotary Pneumatic Brake) →Vertical Storage Bins→Flattening→Rolling and Forming→High-frequency welding→Scraper→Cooling→Sizing→Straightening→Fly Saw Cutting→Unloading Station

Tengtian Tube Mill Co., Ltd. Is a collection of scientific research, production, sales and service as one of the high frequency welded pipe equipment and opening cold bend steel equipment professional manufacturers. Our company is specializing in the production of high-frequency welded pipe, slitting, opening of cold bend steel, stainless steel and other equipment unit of the enterprise, the company innovation based on introduction of Japan's advanced technology, product production, according to Japan's strict standards of manufacturing. Advanced configuration, stable quality, excellent performance, excellent market visibility and reputation, the product has reached the world's leading level.

The company has a strong technical ability, strong business ability, vibrant team. Through the unremitting efforts of all staff, in recent years the company has occupied most of the domestic market, and exported to Korea, Vietnam, Indonesia, South Africa, Kazakhstan and other dozens of countries and regions, from domestic and foreign customers.Product quality and service quality are the most important core competitiveness of the company. The company close to the customer, close to the market, zero distance, full range, wholehearted service ideas, to promote the products in the pre-sale, sale in the whole process of customer service, quality service, honesty, win-win for the purpose of scientific research, to create first-class products to meet your demand for investment, increase confidence for the establishment and development of you. To provide a reliable guarantee. It is the common mission of all Zhongtian employees to produce high quality products and exceed customer expectations.Look forward to working with your cooperation, let us treat each other sincerely ,hand in hand, create great.


Our Services

1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.

2.) Warranty Team

One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.

3.) We supply the pre-sell and after-sell service.

pre-sell service: workshop design, and production output design

after-sell service: installation and training, and the skilled engineer for working.

4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.

5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.

6.) We will be responsible for the loading and shipping
