Product Details:
Payment & Shipping Terms:
|
| Adjustment Ty: | By Turbine Worm | Worm Gearing: | Max.80m/min |
|---|---|---|---|
| Cutting Saw: | Friction Saw Cutting | Pipe Diameter: | 21 - 63mm |
| Max.Thickness For Square Pipe: | 0.8-3.0mm | ||
| High Light: | stainless tube mills,slitting line machine |
||
Pipe Making Equipment Introduction
ERW pipe welder is use for producing welded pipe and corresponding square pipe and profiled pipe.The composition of equipment is from uncoiler to cutting saw.Rolling speed can be adjusted correspondingly within suitable range of pipe diameter and wall thickness

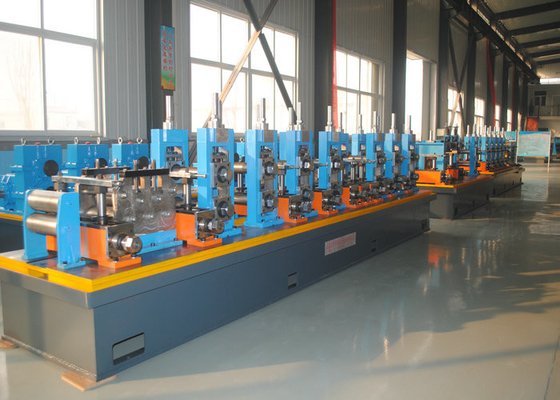

High Frequency Welding Tube Mill
Work Flow:
Loading coil---uncoiler----leveling---shearing and butt welding---accumulator---forming---HF welding---air cooling---water cooling---sizing---cutting by fixed length---end facing and chamfering---hydraulic testing ---storing
Descripion of welded pipe making machine
Welded pipe making machine is used to level the fixed strip after slitting line and entry it to forming machine, bend toopenippe by roller, melt the strip edges throuh te High frequency current, squeeze and weld the pipe to be closedby squeeze roll, the high frenency. ERW Pipe making machine is also called ERW pipe mill. Wanxin's full-automatic welded pipe making machine ranks to topest in this industry.
Technic process of welded pipe making machine
ERW Tube Mill Other Model
| Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
| HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
| HG32 | 10-32MM | 1.4-1.5MM | 120 |
| HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
| HG76 | 25-76MM | 1-4MM | 30-100 |
| HG89 | 32-89MM | 1-4.5MM | 30-80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
| HG165 | 60-165MM | 3-7MM | 30-50 |
| HG219 | 114-219MM | 4-8MM | 20-40 |
| HG273 | 114-273MM | 4-10MM | 15-30 |
| HG325 | 165-325MM | 4-10MM | 10-30 |
| HG426 | 165-426MM | 4-12.7MM | 8-25 |
| HG508 | 219-508MM | 4-16MM | 8-20 |
