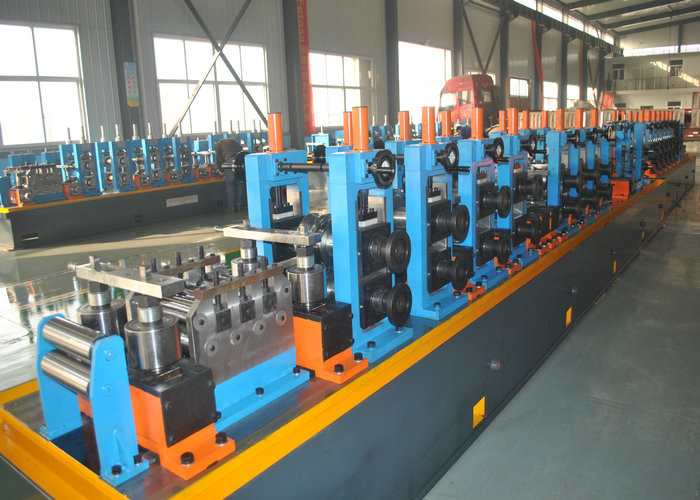

High Speed ERW Tube Mill for Carbon Steel Pipes 16-76mm

Name: High Speed ERW Tube Mill for Carbon Steel Pipes 16-76mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	TENGTIAN
Certification:	ISO9001，BV，CE
Model Number:	HG60

Detail Information

Place of Origin:

CHINA

Brand Name:

TENGTIAN

Certification:

ISO9001，BV，CE

Model Number:

HG60

Product Name:

Factory High Speed Ms Pipe Making Machinery Automation High Quality Tube Mill

Pipe Material:

Carbon Steel,Stainless Steel

Application:

Energy Supply Pipe,Natural Gas,Petroleum

Voltage:

380V/220V

Pipe Diameter:

16-76mm

Thickness:

0.7-2.5mm

Speed:

30-120m/min

Keywords:

Factory High Speed Ms Pipe Making Machinery

Highlight:

High Light

Highlight:

stainless tube mills

slitting line machine

Trading Information

Minimum Order Quantity:

1SET

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

3.5 months

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

80 Sets/Year

Product Description

Factory High Speed MS Pipe Making Machinery - Automated Tube Mill

Product Specifications

Attribute	Value
Pipe Material	Carbon Steel, Stainless Steel
Application	Energy Supply Pipe, Natural Gas, Petroleum
Voltage	380V/220V
Pipe Diameter	16-76mm
Thickness	0.7-2.5mm
Speed	30-120m/min

Production Process

Our fully automated tube mill can be customized to meet specific requirements, with standard production process including:

Uncoiler → Shear & Welding Machine → Accumulator (Cage)
Forming Machine → HF Welding → Sizing Machine
Flying Saw (Cold Saw) → Run Out Table
Hydro Testing → End Facing

For API standard applications, we can equip online testing equipment including Hydro Testing, End Facing, UT Testing, and ECT Testing.

Standard Machine Specifications

The following specifications are adjustable based on specific requirements:

Model	Diameter (mm)	Thickness (mm)	Speed (m/min)	Main Power (kw)	HF Welder (KW)	Area (m²)
HG32	10-32	0.4-1.5	30-100	250	100	12x100
HG50	12-50	0.6-2.5	30-90	300	150	12x100
HG76	12-76	1-3	30-90	320	200	12x100
HG89	32-89	1-4	30-80	350	300	12x100
HG114	45-114	1.5-5.0	30-60	400	300	12x100
HG165	60-165	3-7	30-50	600	400	12x100
HG219	114-219	4-8	20-40	800	500	15x150
HG273	114-273	4-10	15-30	1000	600	18x160
HG325	165-325	4-10	10-30	1200	600	12x100
HG426	165-426	4-12.7	8-25	1400	800	12x100
HG508	219-508	4-16	8-20	2000	1000	12x100
