High Speed 120m/min Carbon Steel Coil Slitting Machine 0.5-4.0mm
  • High Speed 120m/min Carbon Steel Coil Slitting Machine 0.5-4.0mm
  • High Speed 120m/min Carbon Steel Coil Slitting Machine 0.5-4.0mm

High Speed 120m/min Carbon Steel Coil Slitting Machine 0.5-4.0mm

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE ISO
Model Number: SJ1600*4
Detail Information
Place of Origin:
HEBEI,CHINA
Brand Name:
Tengtian
Certification:
CE ISO
Model Number:
SJ1600*4
Name:
High Speed Max 120m / Min Carbon Steel Coil Slitting Machine
Steel Thickness:
0.5-4.0mm
Special Require:
Can Design According To The Customer
Type:
Carbon Steel Slitting Machine
Highlight:

High Light

Highlight:

slitting line machine

,

strip slitting machine

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
packed in seaworthy material
Delivery Time:
two months
Payment Terms:
Western Union,L/C,T/T
Supply Ability:
100 set per year
Product Description
High Speed Max 120m / min Carbon Steel Coil Slitting Machine
Product Specifications
Attribute Value
Name High Speed Max 120m / min Carbon Steel Coil Slitting Machine
Steel thickness 0.5-4.0mm
Special requirements Can be customized according to customer needs
Type Carbon Steel Slitting Machine
General Description

This high-speed carbon steel coil slitting machine is designed to uncoil, level, slit, and recoil steel plates with precision and efficiency. The machine features a rotary shearing unit for clean cuts and includes recoiling and packaging capabilities.

Material Specifications
  • Coil material: Cold/hot rolled steel
  • Coil thickness: 0.6-3.0mm
  • Coil width: 500-1212mm
  • Coil ID: Φ508-Φ760mm
  • Coil OD: Φ1000-Φ1600mm
  • Maximum coil weight: 18MT
Technical Process

The complete slitting process includes:

  • Loading coil
  • Uncoiler
  • Straightening head & pinching & leveling machine
  • Hydraulic shearing machine
  • Vertical roll
  • Rotary slitting machine
  • Scrap winder
  • Accumulator
  • Tension device
  • Recoiling machine
  • Discharging car
Power Requirements

Motors of the line (without optional machines): 260KW

Installation Requirements
  • Estimated area needed: 21M × 9.5M (L × W)
  • Line foundation drawing provided by manufacturer
  • 20 tons capacity lifters required (1 unit)
  • Power supply needed: 260KW
Note: All operators should participate in installation and debugging to receive proper training on machine operation from our engineers.

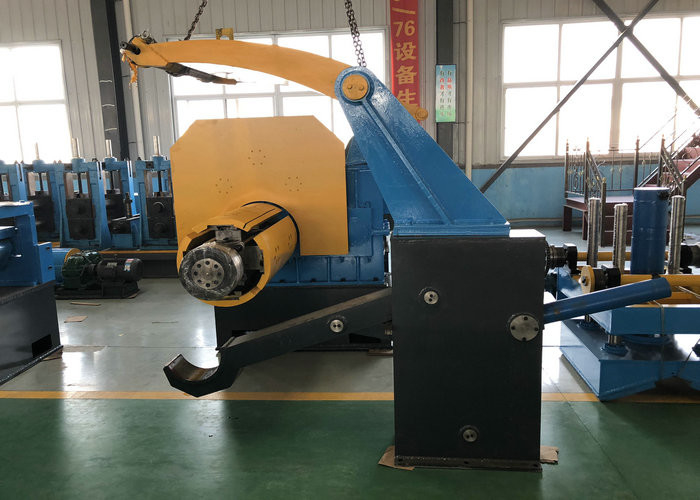

Machine Photos
High Speed 120m/min Carbon Steel Coil Slitting Machine 0.5-4.0mm 0
