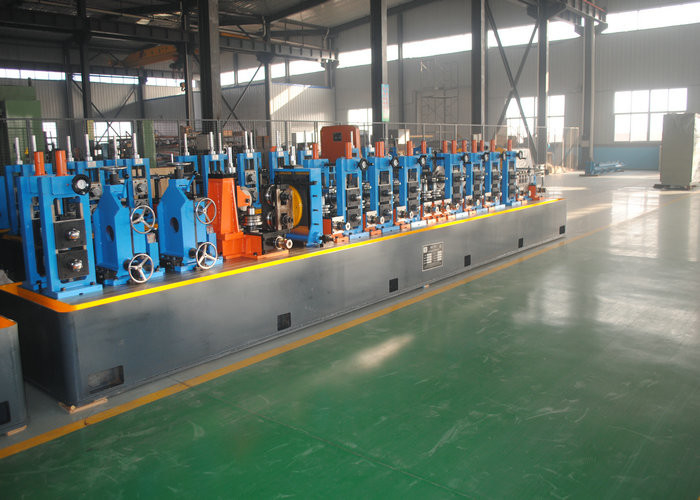

ERW high frequency welding carbon steel water supply pipe production mill
Specifications:
1. Raw Material
| 1 | Mateairal applcaition | Hot or cold rolled steel strips, galvanzied steel strips |
| 2 | Material grade | Low-carbon steel, low alloy steel: δs≤345Mpa |
| 3 | ID of the steel strips | Φ508-Φ610mm |
| 4 | OD of the steel strips | Φ800-Φ2000mm |
| 5 | Coiler weight | Max.4000kg |
2. Production Range:
| Round Pipe | 32- 140mm | Thickness: 1.0-5.0mm |
| Square Pipe | 25*25- 110*110mm | Thickness: 1.0-4.0mm |
| Rectangular Pipe | 20*30 - 90*120mm | Thickness: 1.0-4.0mm |
3. H.F. Welder: GGP300Kw Solid State High Frequency Welder
4. Line Spees: Max.70m/min
5. Tube Length: 6-12m
6. Cutting Accuracy: ±3mm
7. Electric installed capacity: appro. 500KW
8. Size of whole line: about 80X9m
The ERW pipe mill with high frequency solid welder,can product he round pipe,square pipe and
rectangular pipe in high speed,and also can product the L,T,Z shape pipe,reduce the cost of roller ensure the quality of the finish pipe.
Product Process:
material(steel coil)→uncoiler→shear and welder→horizontal(or cage) accumulator→forming mill→
HF soild welder→sizing mill→rounghly straightening(turkey head)→cut off machine→run out table
High‐frequency welded tube mill line is designed to produce round tube diameter of 25.4 – 114 mm, and wall thickness of 0.8 ‐4.0 mm. This line utilizes roll forming to process steel strip into various shapes. Using high frequency induction heating, this line is capable of producing section material of various diameters and sizes by squeezing weld seam together into closed shape. The application of advanced aperture technology, PLC automatic control system and British Eurasia Digital speed‐regulating unit ensure that the production line works reliably and operates and maintains easily.
ERW Tube Mill Other Model
| Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
| HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
| HG32 | 10-32MM | 1.4-1.5MM | 120 |
| HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
| HG76 | 25-76MM | 1-4MM | 30-100 |
| HG89 | 32-89MM | 1-4.5MM | 30-80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
| HG165 | 60-165MM | 3-7MM | 30-50 |
| HG219 | 114-219MM | 4-8MM | 20-40 |
| HG273 | 114-273MM | 4-10MM | 15-30 |
| HG325 | 165-325MM | 4-10MM | 10-30 |
| HG426 | 165-426MM | 4-12.7MM | 8-25 |
| HG508 | 219-508MM | 4-16MM | 8-20 |
Our Services
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
