Thickness 1-4mm Straight Seam Welding ERW tube making machine

Certification
China Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd. certification
China Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd. certification
Customer Reviews
Thanks for your pipe mill,very good quality and best after-slae service!

—— Mr.Gaber Ibrahim

Dear Amy, Nice day. We have received your mill machine,very good,thanks

—— Eng.Sandeep Sharma

Hi Ms.Amy, Greetings! Thanks for everything when visiting you,very nice factory and good quality machine. Hopefully we can be good patners in future.

—— Ddwin Jakobs

I'm Online Chat Now

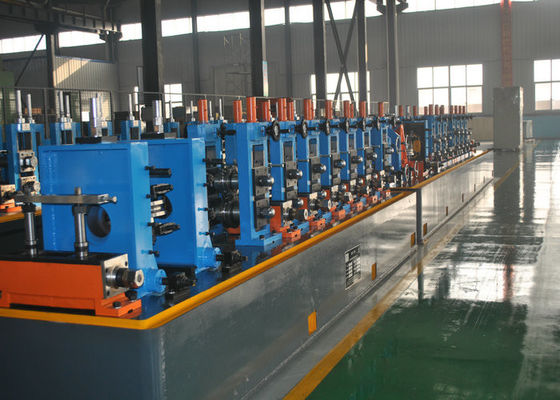

Thickness 1-4mm Straight Seam Welding ERW tube making machine

Thickness 1-4mm Straight Seam  Welding  ERW tube making machine
Thickness 1-4mm Straight Seam  Welding  ERW tube making machine Thickness 1-4mm Straight Seam  Welding  ERW tube making machine Thickness 1-4mm Straight Seam  Welding  ERW tube making machine

Large Image :  Thickness 1-4mm Straight Seam Welding ERW tube making machine

Product Details:
Place of Origin: CHINA
Brand Name: TENGYIAN
Certification: ISO9001,BV,CE
Model Number: HG76
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiate
Packaging Details: Export waterproof and Seaworthy packing.
Delivery Time: 60 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 80 Sets/Year
Detailed Product Description
Pipe Material: Carbon Steel,Stainless Steel Application: Energy Supply Pipe,Natural Gas,Petroleum,Drain Pipe
Voltage: 380V/220V Weight: About 10 Tons
Pipe Shape: Round,square,etc. Pipe Diameter: 16-76mm
Thickness: 1-4mm Color: Blue,blue Green Or As Your Requirement
High Light:

erw tube mill

,

stainless tube mills

Thickness 1-4mm Straight Seam Welding ERW tube making machine





The model and basic parameters

Model Diameter(mm) Thickness(mm) Speed(m/min) Main power(kw) HF welder(KW) Area(m2)
HG32 10-32 0.4-1.5 30-100 250 100 12x100
HG50 12-50 0.6-2.5 30-90 300 150 12x100
HG76 12-76 1-3 30-90 320 200 12x100
HG89 32-89 1-4 30-80 350 300 12x100
HG114 45-114 1.5-5.0 30-60 400 300 12x100
HG165 60-165 3-7 30-50 600 400 12x100
HG219 114-219 4-8 20-40 800 500 15x150
HG273 114-273 4-10 15-30 1000 600 18x160
HG325 165-325 4-10 10-30 1200 600 12x100
HG426 165-426 4-12.7 8-25 1400 800 12x100
HG508 219-508 4-16 8-20 2000 1000 12x100







































Scope of Supply:



1) Machine installation & test running for Buyer.



2) Sufficiently train operation method to Buyer's operators.



3) Reference document (in English): foundation drawing (including the arrangement of water, electricity and air etc.), circuit diagram and operation instruction, etc



4) Additional Rollers for welded pipe will be ordered and designed according to type and specification provided by Buyer.



Material:

Cr12











Scope of work excluded (Buyer scope)



1) Foundation construction and electric appliance work, civil engineering and necessary materials.



2) Machine to machine wire, mechanical pipe, water pipe;



3) Lubricating oil, cycle oil, gear box oil, cooling circulating water



4) D .Safety appliance, out of standard security items



5) Test run material, magnetic rod, bearing etc. low value consumables.



6) The buyer is responsible for power supply, water supply and gas supply to the equipment interface connector. Air compressor (1.5 cubic meters/minutes)





High frequency tube Straight Seam Welding Pipe Mill, Pipe making machine



1. Description

This equipment is specially used for producingΦ20-Φ80mm, δ0.5-2.0mm high-frequency straight seam welded pipe and corresponding square pipe (17*17-62*62mm,1.2-3.0mm). The composition of equipment is from uncoiler to fixed length cutting saw. Rolling speed can be according to suitable range of pipe diameter and wall thickness.



2. Applicable material:

1 Raw material: Low-carbon steel,

2 Thickness of steel strip: 1.0-3.5mm
3 The width of steel strip: 60-240mm
4 I.D. of steel coil: Φ450-Φ550mm
5 O.D. of steel coil: Φ800-Φ1200mm
6 Maximum weight coil: 2500kgs



3. Dimension range of processing steel tube:

1 O.D of pipe: Φ20-Φ80mm
2 Wall thickness: 1.0-3.5mm (square pipe :1.2-3.0mm)

3 Length: 4-8m
4 Milling speed: 60-70m/min
5 High-frequency equipment power: 250 KW (Solid state)
6 Voltage:380V/440V,50HZ


4. Milling speed: 20-100M/min(choose different speed as per different pipe diameter and thickness)



5. Product (steel tube) process flow:

Raw material (steel coil) → uncoiling → shearing and end welding → material accumulating → non-power leveling → mill-forming → high-frequency welding → removing burrs outside of weld seam → cooling → sizing → roughly straightening → fixed length cutting → finishing tube













After-sales Service Provided

Engineers available to service machinery overseas
Warranty 1 year
Certification ISO9001:2010
Application Used in Decoration,Furniture,Household, hand railing , industrial area etc
Pipe Material Stainless steel / Carbon steel / Iron / Aluminum / Copper/ Galvanize etc
Type Pipe mill
Diameter 12-76mm
Thickness 0.3-2.0mm
Horizontal shaft 50mm
Vertical shaft 30mm
Pipe shape Round / Square / Rectangle
Welding type Argon welding
