Product Details:
Payment & Shipping Terms:
|
| Mill Speed: | 30-100m/min | Material: | HRC,CRC,Galvanised Steel |
|---|---|---|---|
| Pipe Diameter: | 25-76mm | Welding Type: | High Frequency Welding |
| Pipe Shape: | Round,square,rectangular | Adjustment Type: | By Turbine Worm |
| Cutting Saw: | Cold Saw & Friction Saw Cutting | ||
| High Light: | ss tube mill machine,pipe milling machine |
||

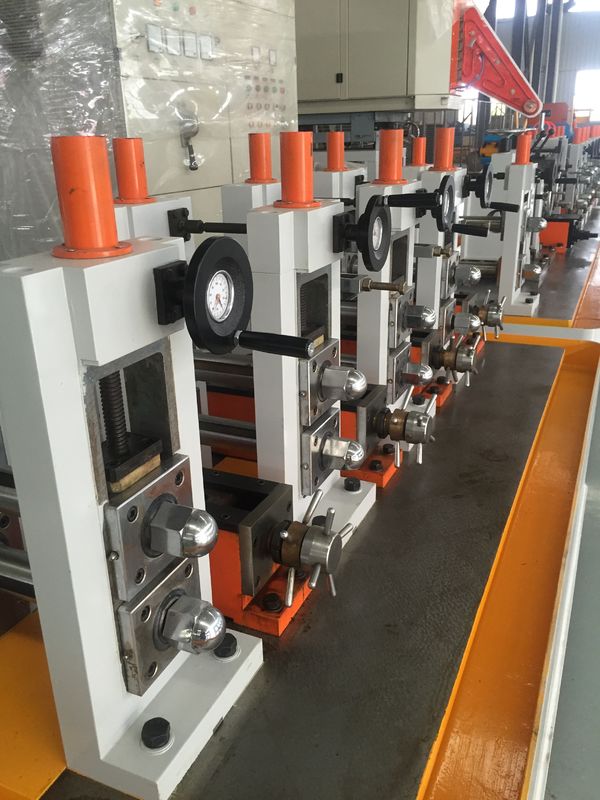

Stainless steel tube mill is for forming the steel strip and welding the edges together to make pipe in various shape
high precision ss stainless steel welded tube mill
Making pipes of decorative purpose or industria purpose
Pipe wall thicknes: 0.5-5.0mm
Pipe outside diamete: 8-219mm
Brief introduction:
Stainless Steel Pipe Welding Machines are designed to form steel strips into round, square or retangle pipes or special section tubes mostly for ornamental or industrial purpose.The pipes for industrial use require a finer inner surface leveling than for ornametal use.FOT steel pipe mills are designed and fabricated in accordance with industry-defined standards.
With improved metallurgy and welding process,the benifits of welded pipe have diminished the use of seamless tubes in many fields such as stair railing, drinking water pipes, food hygiene tubes,auto exhaust pipes,heat exchanger etc.
Process:
Uncoiling → Forming → Welding → Grinding → Straightening → Sizing → saw cutting → stacking
Line composition:
1. Decoiler
2. Forming and welding machine
3. Grinding machine
4. Straightening frame
5. Cutting machine
6. Finished product stacking frame
Line speed: 1-8m/min
Argon arc welder is used for pipe wall thickness under 3mm.
Plasma welder will be used for welding pipes with wall more than 3mm in thickness
| Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
| HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
| HG32 | 10-32MM | 1.4-1.5MM | 120 |
| HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
| HG76 | 25-76MM | 1-4MM | 30-100 |
| HG89 | 32-89MM | 1-4.5MM | 30-80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
| HG165 | 60-165MM | 3-7MM | 30-50 |
| HG219 | 114-219MM | 4-8MM | 20-40 |
| HG273 | 114-273MM | 4-10MM | 15-30 |
| HG325 | 165-325MM | 4-10MM | 10-30 |
| HG426 | 165-426MM | 4-12.7MM | 8-25 |
| HG508 | 219-508MM | 4-16MM | 8-20 |
General introduction of erw pipe mill
KJ Series Straight Seam High Frequency Steel erw pipe mill lines are used to manufacture welded steel pipes of diameter range from Φ7mm-Φ219mm, wall thickness range 0.2mm-8.0mm.
They are also used to produce profiled pipes within the limit of processing round pipes, such as the square pipes,rectangular pipes, oval pipes,etc.
After absorbing advanced pipe making technology from both abroad and domestic, our innovative designed production line is not only economical but also practical.
Applied raw material of erw pipe mill
Low carbon steel, low alloy steel, galvanized steel, stainless steel,etc.
