Product Details:
Payment & Shipping Terms:
|
| Pipe Material: | Carbon Steel | Voltage: | 380V/220V |
|---|---|---|---|
| Weight: | About 10 Tons | Pipe Shape: | Round,square |
| Pipe Diameter: | 16-50mm | Thickness: | 0.5-2.0mm |
| Speed: | 30-90m/min | Color: | Blue |
| High Light: | erw tube mill,slitting line machine |
||

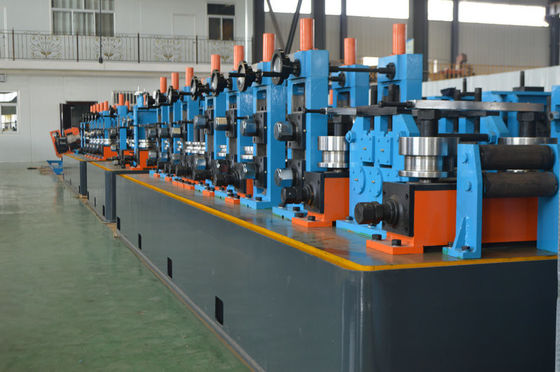

What is the specifications of steel square pipe making machine?
| name | steel square pipe making machine |
| a)Steel Pipe Specification | |
| Pipe diameter: | Ø16–Ø50mm |
| Pipe Thickness: | 0.5– 2.5mm |
| Square Pipe: | 14X14mm –40X40mm |
| Rectangle Pipe: | 10X20mm –40X50mm |
| Pipe Thickness: | 0.5–2.0mm |
| Pipe Length: | 6-9m |
| Length Tolerance: | 0-3mm |
| b) Steel Tape Specification | |
| Material: | Low Carbon steel (δb≤500Mpa, δs≤235Mpa) |
| Steel Tape: | |
| Inner diameter: | Φ580-Φ610mm |
| Outer diameter: | Φ900-1500mm |
| Strip steel width: | 60mm-200mm |
| Strip steel thickness | 0.5mm-2.5mm |
| The maximum weight: | 3.0 tons |
| c) Electricity | |
| Dynamic power: | AC380V±10%, 3phases, 50Hz±10% |
| Control Power: | AC220V±10%, one phase, 50Hz ±10% |
| Electric installed capacity: | appro 450KW |
| e) Cooling water | |
| Reservoir for High Frequency equipment: | 15 m³, one set |
| Reservoir for circulating cooling water: | 15 m³, one set |
| f) Compressed air | |
| Pressure: | 0.4Mpa |
| Flow: | 0.5m3/h |
| g) Line speed: |
30-90m/min |
more details of steel square pipe making machine
two kindsof Shearing & butt welding machine
three types of spiral accumulator
