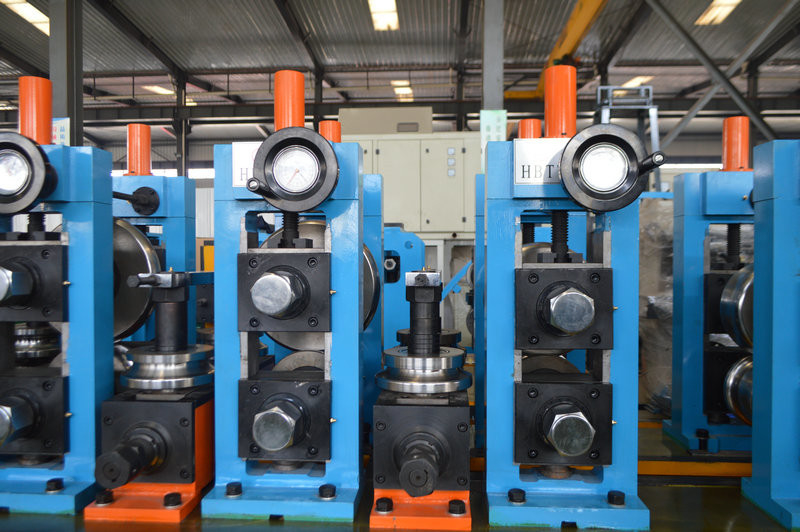

Galvanized GI Pipe Making Machine for Carbon Steel 16-50mm

Name: Galvanized GI Pipe Making Machine for Carbon Steel 16-50mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG50
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HeBEI，CHINA
Brand Name:	TENGTIAN
Certification:	ISO9001/BV
Model Number:	HG50

Detail Information

Place of Origin:

HeBEI，CHINA

Brand Name:

TENGTIAN

Certification:

ISO9001/BV

Model Number:

HG50

Product Name:

MS Iron Metal Steel Square Pipe Making Machine Galvanized GI Pipe Making Machine

Pipe Material:

Carbon Steel

Voltage:

380V/220V

Weight:

About 10 Tons

Pipe Shape:

Round,square

Pipe Diameter:

16-50mm

Thickness:

0.5-2.0mm

Speed:

30-90m/min

Color:

Blue

Keywords:

Galvanized GI Pipe Making Machine

Highlight:

High Light

Highlight:

erw tube mill

slitting line machine

Trading Information

Minimum Order Quantity:

1SET

Price:

$100000 to $1 million

Packaging Details:

Seaworthy packing

Delivery Time:

3 months

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

120 units a year

Product Description

MS Iron Metal Steel Square Pipe Making Machine

Key Specifications

Pipe Material	Carbon Steel
Voltage	380V/220V
Weight	Approximately 10 tons
Pipe Shapes	Round, Square
Pipe Diameter	16-50mm
Thickness	0.5-2.0mm
Speed	30-90m/min
Color	Blue

Steel Pipe Specifications

Pipe Diameter	Ø16-Ø50mm
Pipe Thickness	0.5-2.5mm
Square Pipe	14X14mm - 40X40mm
Rectangle Pipe	10X20mm - 40X50mm
Pipe Length	6-9m
Length Tolerance	0-3mm

Steel Tape Specifications

Material	Low Carbon steel (δb≤500Mpa, δs≤235Mpa)
Inner Diameter	Φ580-Φ610mm
Outer Diameter	Φ900-1500mm
Strip Steel Width	60mm-200mm
Strip Steel Thickness	0.5mm-2.5mm
Maximum Weight	3.0 tons

Electrical Specifications

Dynamic Power	AC380V±10%, 3 phases, 50Hz±10%
Control Power	AC220V±10%, one phase, 50Hz±10%
Electric Installed Capacity	Approximately 450KW

Additional Features

Cooling water system with 15 m³ reservoirs (one for High Frequency equipment, one for circulating cooling water)
Compressed air system (Pressure: 0.4Mpa, Flow: 0.5m³/h)
Line speed: 30-90m/min
Two kinds of Shearing & butt welding machine
Three types of spiral accumulator

Galvanized GI Pipe Making Machine Steel Pipe Production Square Pipe Machine
