Product Details:
Payment & Shipping Terms:
|
| Product Name: | Pipe Production Line Type And Carbon Steel Pipe Material ERW Tube Mill | Pipe Material: | Carbon Steel,Stainless Steel |
|---|---|---|---|
| Application: | Energy Supply Pipe,Natural Gas,Petroleum | Weight: | About 10 Tons |
| Pipe Shape: | Round,square,etc. | Pipe Diameter: | 16-76mm |
| Thickness: | 0.7-2.5mm | Keywords: | Pipe Production Line |
| Highlight: | erw tube mill,slitting line machine |
||

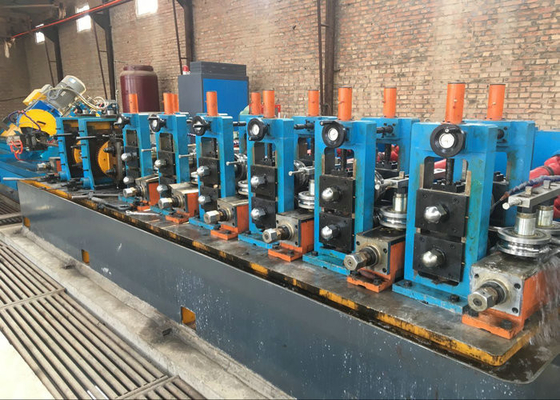

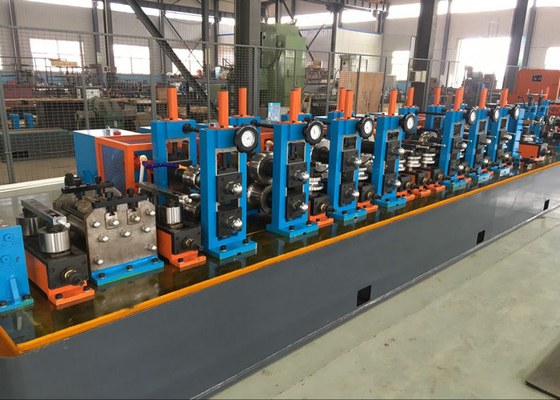

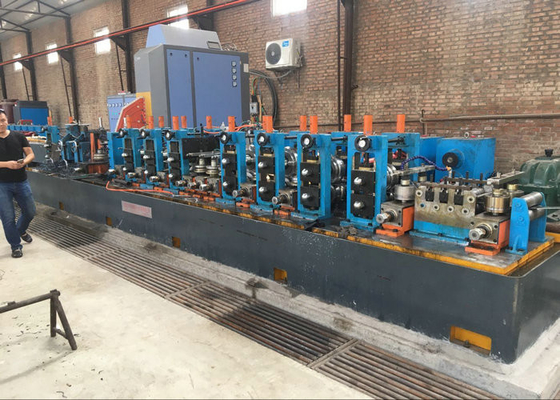

Pipe Production Line Type and Carbon Steel Pipe Material ERW Tube Mill The high frequency straight seam Square steel tube making machine is used to level the fixed strip after slitting line and entry it to forming machine, bend toopenippe by roller, melt the strip edges throuh te High frequency current, squeeze and weld the pipe to be closedby squeeze roll, the high frenency Square steel tube making machine is also called ERW pipe mill.
Carbon Steel Pipe Production Line:
Pipe Production Line's job is to take a continously coiled flat strip, align the two edges together, put the edges in the right place while they are welded, and then size and straighten the finished tubular products to the required specifications.
Basic Components of a complete pipe production line :
raw material(steel strip coil) -->double side uncoiler--> shear and end welder --> horizontal type strip accumulator --> forming unit --> high frequency welding--> burr removing frame--> water cooling sysytem--> sizing unit--> Turky head (straightener) --> computer controlled flying saw-->runout table
Specifications:
For production of steel tube, pipe in round, square.
1. Pipe O.D: 8~273mm
2. Wall thickness: 0.3~12mm
3. Speed: 0~90m/min
Tube Mill, Steel Pipe Production Line, Pipe Mill
1. To make steel pipe O.D. from 0.3 to 11inch(8mm to 273mm)
2. Wall thickness from 0.3 to 12mm.
The complete line include the following device:
| 1. | Double side Uncoiler |
| 2. | Hoop cage or Horizontal Accumulator |
| 3. | Main Machine: |
| 3.1. | Forming Machine |
| 3.2. | Roller System of Forming |
| 3.3. | Seam Guide |
| 3.4. | High Frequency Induction Welding Machine |
| 3.5. | Roller System for Moving |
| 3.6. | Burr Removing Frame (Inside and outside Burr ) |
| 3.7. | Water Cooling System |
| 3.8. | Sizing Machine |
| 3.9. | Roller System of Leveling |
| 3.10. | Speed Testing Wheel |
| 3.11. | Turkish Frame |
| 4. | Auto Flying Saw Controlled by Computer |
| 5. | Run out table |
| 6. | Electric Control Equipment |
| 7. | High Frequency Welding Machine |
