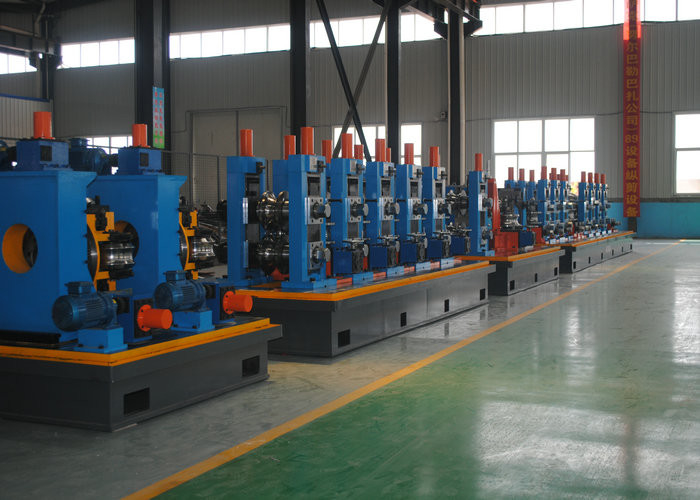

High Frequency Welded Pipe Making Machine , Durable Square Tube Mill

High Frequency Welded Pipe Making Machine , Durable Square Tube Mill
High Frequency Welded Pipe Making Machine , Durable Square Tube Mill High Frequency Welded Pipe Making Machine , Durable Square Tube Mill

Large Image :  High Frequency Welded Pipe Making Machine , Durable Square Tube Mill

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG60
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiated
Packaging Details: Export waterproof and Seaworthy packing.
Delivery Time: 3 months
Payment Terms: L/C, T/T
Supply Ability: 40 Sets/Year
Detailed Product Description
Material: Hot Rolled Coil, Cold Rolled Coil,Galvanised Steel Pipe Shape: Round, Square & Rectangular
Running Speed: Max.80m/min Adjusting: Worm Gearing
Pipe Diameter: 21 - 63mm Max.Thickness For Square Pipe: 0.8-3.0mm
Welding Type: High Frequency Welding
High Light:

stainless tube mills

,

slitting line machine





High Frequency Welded Pipe Making Machine , Durable Square Tube Mill



Basic componets & Work flow:
Uncoiler→Shearing and butt-welder→Vertical-type accumulator→Forming,welding,sizing machine→

Computer cutting saw→Run-out table





Scope of Supply:



1) Machine installation & test running for Buyer.



2) Sufficiently train operation method to Buyer's operators.



3) Reference document (in English): foundation drawing (including the arrangement of water, electricity and air etc.), circuit diagram and operation instruction, etc



4) Additional Rollers for welded pipe will be ordered and designed according to type and specification provided by Buyer.



Material: Cr12





Sale conditions



1) Packing: Sea worthy packing, the mechanical parts are in nude pack, and the electrical arts and the spare parts are simply packed.



2) Quality Assurance: the Seller manufactures the equipment according to the relevant standards strictly and tests the equipment according to the technical documents.



3) Installation: three engineers will be dispatched to Buyer factory for installation and test running. The buyer should charge of return ticket, food and accommodation abroad and pay USD60/person/day for salary.



4) Warranty: we guarantee one year’s warranty after test running. (The matters caused by Buyer’s fault and the lack of Buyer’s maintenance shall not be covered). And we offer lifelong technical service and fast-response technical support to Buyer.





Scope of work excluded (Buyer scope)



1) Foundation construction and electric appliance work, civil engineering and necessary materials.



2) Machine to machine wire, mechanical pipe, water pipe;



3) Lubricating oil, cycle oil, gear box oil, cooling circulating water



4) D .Safety appliance, out of standard security items



5) Test run material, magnetic rod, bearing etc. low value consumables.



6) The buyer is responsible for power supply, water supply and gas supply to the equipment interface connector. Air compressor (1.5 cubic meters/minutes)











Application



Carbon Steel Erw Tube Mill,Tube Mill Line ,Erw Pipe Mill mainly produces stainless steel pipes used for decoration such as furniture, hand railing, household electric applicance, curtain rail, etc. The machine not only can make round pipe, but also square pipe, rectangle pipe, oval pipe and other irregular pipe as well.











Cold sawing cutting

Digitally cold cutting machine is composed of mechnical parts, electronic parts and hydraulic parts. Three shafts are tracking shaft, cutting feeding shaft, saw blades rotating shaft, this three shafts are controlled by its special motion controller, servo motor driving operatiing, and the parameters are entered through LCD touch screen, also working condition can be visible checked from touch screen. The saw blades of cold saw using the high speed steel, and the cold saw can run synchronous while the pipe mill line producing; the CNC system of the cold saw can ensure the cutting speed and position accuracy, the cutting head(with saw blade) feeding and rotating speed can be adjusted by CNC program according to the technological requirements.



Our Services

1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.

2.) Warranty Team

One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.

3.) We supply the pre-sell and after-sell service.

pre-sell service: workshop design, and production output design

after-sell service: installation and training, and the skilled engineer for working.

4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.

5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.

6.) We will be responsible for the loading and shipping
