Round Pipe Shape Steel Precision Tube Mill Machine High Frequency Welding

Round Pipe Shape Steel Precision Tube Mill Machine High Frequency Welding
Round Pipe Shape Steel Precision Tube Mill Machine High Frequency Welding Round Pipe Shape Steel Precision Tube Mill Machine High Frequency Welding

Large Image :  Round Pipe Shape Steel Precision Tube Mill Machine High Frequency Welding

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE,ISO9001,BV
Model Number: HG50
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Export waterproof and Seaworthy packing.
Delivery Time: 90 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Sets/Year
Detailed Product Description
Welding Type: High Frequency Welding Cutting Saw: Cold Saw & Friction Saw Cutting
Thickness: 1.0-3.0mm Pipe Diameter: 25-76mm
Pipe Shape: Round,square,rectangular Mill Speed: 30-100m/min
Adjustment Type: By Turbine Worm
High Light:

ss tube mill machine

,

pipe milling machine





Round Pipe Shape Steel Precision Tube Mill Machine High Frequency Welding



Specification

High frequency tube mills



Steel pipe specification

Round pipe Φ32—Φ76mm
thickness 1.0—4.0 mm
Length scope of the pipe 6-12 m
tolerance ±3 mm



Strip steel coil

Inner diameter Φ610mm-Φ760mm
Outside diameter Φ1200mm-Φ2000mm
Strip steel width 520--1200 mm
Strip steel thickness 4.0—12.0mm
Max weight 20 ton
Material Q195-Q235,Q345



Technology date

Forming speed 10-30m/min
Power capacity installed appro. 4000 kW
Elevation of the rolling line +1200 mm
Deeding direction Right or left side feeding
Driver power 380V; 50HZ
Size of the whole line appro. 150×24 m





Product Process:



material(steel coil)→uncoiler→shear and welder→horizontal(or cage) accumulator→forming mill→

HF soild welder→sizing mill→rounghly straightening(turkey head)→cut off machine→run out table

The Basic Parameters:



stands of forming mill 7
stands of sizing mill 5
shaft material 40Cr
round pipe diameter 19-76mm
Round pipe thickness 1.5-3.0mm
square pipe size 15×15-60×60mm
square pipe thickness 1.5-2.0mm



we can design the machine accoeding to the customer detail require.







ERW Tube Mill Other Model



Model Diameter Range Pipe Thickness Line Speed(m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20



General introduction of erw pipe mill

KJ Series Straight Seam High Frequency Steel erw pipe mill lines are used to manufacture welded steel pipes of diameter range from Φ7mm-Φ219mm, wall thickness range 0.2mm-8.0mm.



They are also used to produce profiled pipes within the limit of processing round pipes, such as the square pipes,rectangular pipes, oval pipes,etc.



After absorbing advanced pipe making technology from both abroad and domestic, our innovative designed production line is not only economical but also practical.



Applied raw material of erw pipe mill

Low carbon steel, low alloy steel, galvanized steel, stainless steel,etc

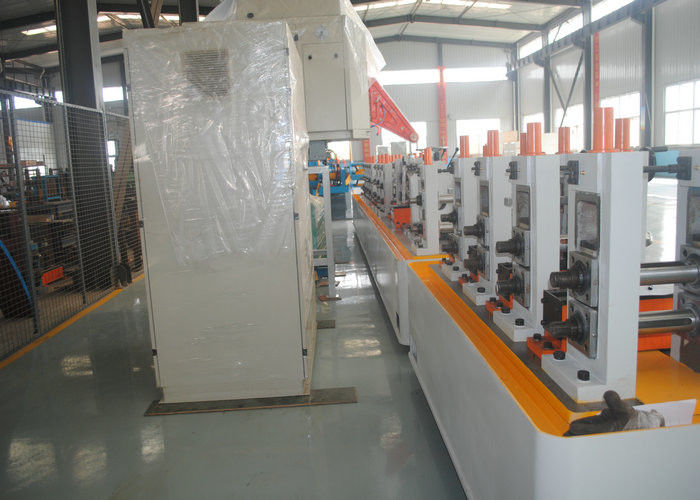

Round Pipe Shape Steel Precision Tube Mill Machine High Frequency Welding 0



Our Services

1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.

2.) Warranty Team

One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.

3.) We supply the pre-sell and after-sell service.

pre-sell service: workshop design, and production output design

after-sell service: installation and training, and the skilled engineer for working.

4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.

5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.

6.) We will be responsible for the loading and shipping
