Product Details:
Payment & Shipping Terms:
|
| Product Name: | Precision Tube Mill High Frequency Welding Pipe Making Machine , Large Diameter Welded Tube Mill | Cutting Saw: | Cold Saw & Friction Saw Cutting |
|---|---|---|---|
| Thickness: | 1.0-3.0mm | Pipe Diameter: | 25-76mm |
| Pipe Shape: | Round,square,rectangular | Mill Speed: | 30-100m/min |
| Adjustment Type: | By Turbine Worm | Keywords: | Precision Tube Mill |
| Highlight: | ss tube mill machine,industrial tube mills |
||

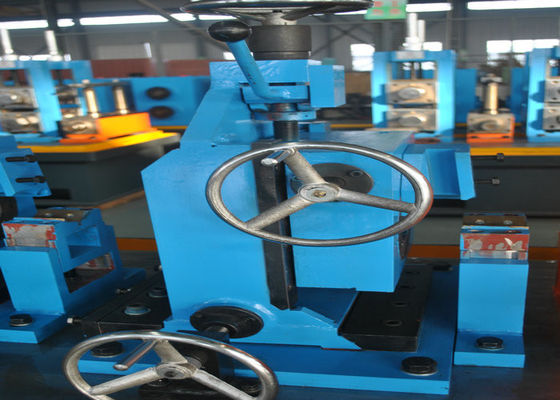

High Frequency Welding Pipe Making Machine , Large Diameter Welded Tube Mill
Standard flow chart of steel tube machine High precision used tube mill with great price:
Function: support rolled plate and strip tension for steel tube machine, by the frame, main shaft, increases of drum, brake.
There are 3 types: pneumatic, hydraulic and manual.
Function: Shear the end of each strip coil, then welding them together, so that pipe mill can be continue production.
2 Types: Automatic & manual
Function: storage strip to keep continue production for the used tube mill.
Type: Vertical
Advantage: easy to operation, low investment. special for small size and light wall pipe
Disadvantage: less storage capacity, crease.
Function: storage strip to keep continue production for the steel tube machine.
Type: Horizontal
Advantage: Large capacity.
Disadvantage: more expensive than vertical type .
Advantage:
>Advanced forming technical
>One-stage molding platform
>Reliable quality gear box
>Siemens Beide motor
Function: Welding the pipe , different thickness & diameter, the power of the HF welding machine welder
Our advantage: We choose the China best welder: Sanyi brand.
Function: sizing the tube to precise size
Advantage:
>Advanced sizing technical
>One-stage molding platform
>Reliable quality gear box and Siemens Beide motor
>High precision, low error of the pipe size
Advantage: easy to operation, low investment.
Disadvantage: loud, cutting section generates burr.
Function:cutting the tube to right length.
Advantage: No noise, no burr cutting precision and cross section .
Disadvantage: the price is 4 times of ordinary flying saw.
Material: Standard Cr12 / SKD11
Advantage: Select the most appropriate mold for our erw tube making machine mill, to save the investment.
ERW Tube Mill Other Model
| Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
| HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
| HG32 | 10-32MM | 1.4-1.5MM | 120 |
| HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
| HG76 | 25-76MM | 1-4MM | 30-100 |
| HG89 | 32-89MM | 1-4.5MM | 30-80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
| HG165 | 60-165MM | 3-7MM | 30-50 |
| HG219 | 114-219MM | 4-8MM | 20-40 |
| HG273 | 114-273MM | 4-10MM | 15-30 |
| HG325 | 165-325MM | 4-10MM | 10-30 |
| HG426 | 165-426MM | 4-12.7MM | 8-25 |
| HG508 | 219-508MM | 4-16MM | 8-20 |
General introduction of erw pipe mill
KJ Series Straight Seam High Frequency Steel erw pipe mill lines are used to manufacture welded steel pipes of diameter range from Φ7mm-Φ219mm, wall thickness range 0.2mm-8.0mm.
They are also used to produce profiled pipes within the limit of processing round pipes, such as the square pipes,rectangular pipes, oval pipes,etc.
After absorbing advanced pipe making technology from both abroad and domestic, our innovative designed production line is not only economical but also practical.
Applied raw material of erw pipe mill
Low carbon steel, low alloy steel, galvanized steel, stainless steel,etc
Our Services
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
