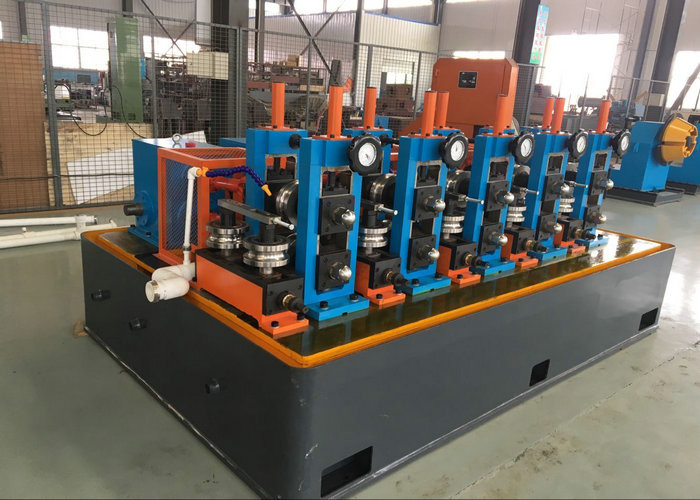

Precision Tube Mill for ERW Pipes 12-52mm Diameter 30-100m/min

Name: Precision Tube Mill for ERW Pipes 12-52mm Diameter 30-100m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG50
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG50

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG50

Product Name:

Precision Tube Mill High Speed ERW Ms Pipe Forming Machinery , Tube Mill Equipment Automatic PLC Control

Cutting Saw:

Cold Saw & Friction Saw Cutting

Thickness:

1.0-3.0mm

Pipe Diameter:

12-52mm

Pipe Shape:

Round,square,rectangular

Mill Speed:

30-100m/min

Adjustment Type:

By Turbine Worm

Keywords:

Precision Tube Mill

Highlight:

High Light

Highlight:

pipe milling machine

industrial tube mills

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

90 work days

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

45 Sets/Year

Product Description

Precision Tube Mill High Speed ERW Ms Pipe Forming Machinery

Automatic PLC-controlled tube mill equipment for manufacturing precision pipes

Product Specifications

Attribute	Value
Cutting Saw	Cold Saw & Friction Saw Cutting
Thickness	1.0-3.0mm
Pipe diameter	12-52mm
Pipe shape	Round, square, rectangular
Mill speed	30-100m/min
Adjustment type	By turbine worm

Product Description

The HG273 mill is designed for manufacturing round pipes of Φ114mm-Φ273mm with thickness of 4.0mm-10mm from cold-rolled and hot-rolled coil strip. The process includes forming unclosed tubular blanks, welding with high-frequency solid state welder, cooling, sizing/shaping, and cutting to measured lengths.

Key Precision Features:

Level roller jumps: 0.01mm
Frame and slide clearance: ≤0.02mm
Frame vertical degree: ≤0.05mm
Frame parallel degree: ≤0.1mm
Diameter and roundness error: ≤0.08mm

Production Process:

Material (steel coil) → Uncoiler → Shear and welder → Horizontal (or cage) accumulator → Forming mill → HF solid welder → Sizing mill → Rough straightening (turkey head) → Cut off machine → Run out table

Basic Parameters:

Stands of forming mill	7
Stands of sizing mill	5
Shaft material	40Cr
Round pipe diameter	19-76mm
Round pipe thickness	1.5-3.0mm
Square pipe size	15×15-60×60mm
Square pipe thickness	1.5-2.0mm

Custom machine designs available according to customer requirements.

ERW Tube Mill Models:

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4mm	0.3-1.2mm	120
HG32	10-32mm	1.4-1.5mm	120
HG50	16-76mm	0.7-2.5mm	30-120
HG76	25-76mm	1-4mm	30-100
HG89	32-89mm	1-4.5mm	30-80
HG114	45-114mm	1.5-5.0mm	30-60
HG165	60-165mm	3-7mm	30-50
HG219	114-219mm	4-8mm	20-40
HG273	114-273mm	4-10mm	15-30
HG325	165-325mm	4-10mm	10-30
HG426	165-426mm	4-12.7mm	8-25
HG508	219-508mm	4-16mm	8-20

Compatible Materials:

Low carbon steel, low alloy steel, galvanized steel, stainless steel, etc.

Our Services

On-site installation and operator training by our engineers
One year quality guarantee with lifetime repair support
Comprehensive pre-sale and after-sale services
Option for extended engineer support (several months to 1 year)
Complete project design services for pipe production facilities
