High Frequency Welded Pipe Mill for Carbon Steel 21-63mm Diameter

Name: High Frequency Welded Pipe Mill for Carbon Steel 21-63mm Diameter
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG60

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG60

Product Name:

High Frequency Welded Pipe Milling Machine Galvanized TIG Welding Plant

Max.Thickness For Square Pipe:

0.8-3.0mm

Worm Gearing:

Max.80m/min

Certification:

CE ISO

Pipe Diameter:

21 - 63mm

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Adjusting:

Worm Gearing

Cutting Length Precision:

±3mm

Producing Speed:

30~60m/min

Square Pipe Size:

15×15mm* 0.5mm~1.5mm

Key Word:

High Frequency Welded Pipe Mill

Pipe Length:

4-12m

Rectangular Tube:

8mm X 12mm, 60mmx80mm

Running Speed:

Max.30m/min

Highlight:

High Light

Highlight:

Galvanized high frequency welded pipe mill

TIG high frequency welded pipe mill

Galvanized high frequency welded tube mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

2.5 months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

50 set per year

Product Description

High Frequency Welded Pipe Milling Machine Galvanized TIG Welding Plant

Product Specifications

Attribute	Value
Max.Thickness for Square Pipe	0.8-3.0mm
Worm Gearing	Max.80m/min
Certification	CE ISO
Pipe Diameter	21 - 63mm
Material Compatibility	Carbon steel, stainless steel, low alloy steel
Adjusting Mechanism	Worm gearing
Cutting Length Precision	±3mm
Producing Speed	30~60m/min
Square Pipe Size	15×15mm* 0.5mm~1.5mm
Pipe Length	4-12m
Rectangular Tube Compatibility	8mm x 12mm, 60mmx80mm
Running Speed	Max.30m/min

Product Overview

This high-frequency welded pipe milling machine is designed for precision galvanized TIG welding applications. The system offers exceptional speed and accuracy for producing various pipe sizes and shapes with consistent quality.

Key Features

High-frequency welding technology for superior pipe joints
Worm gearing adjustment system for precise control
Compatible with multiple steel types including carbon and stainless steel
CE and ISO certified for quality assurance
High production speeds up to 60m/min
Precision cutting with ±3mm accuracy

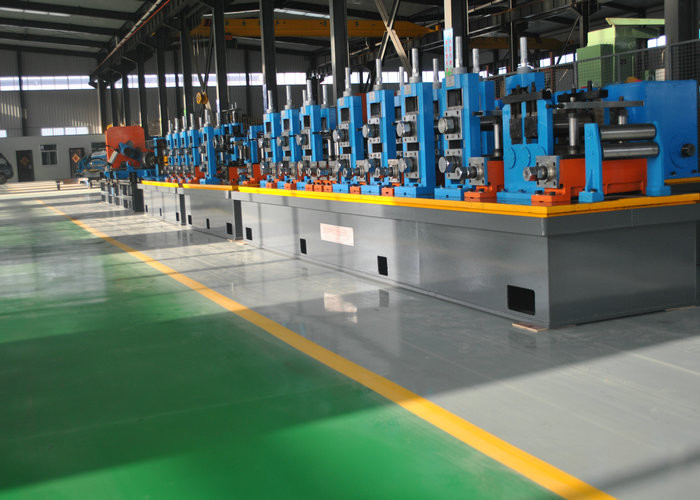

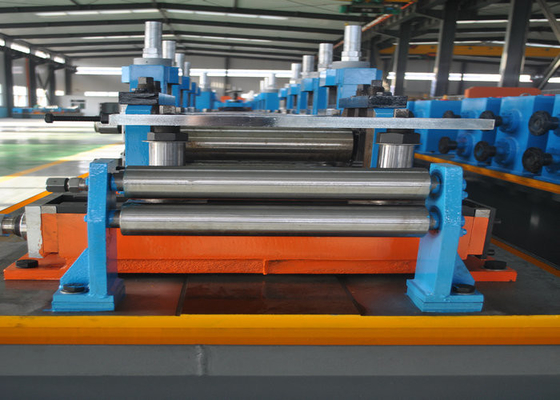

Product Images
