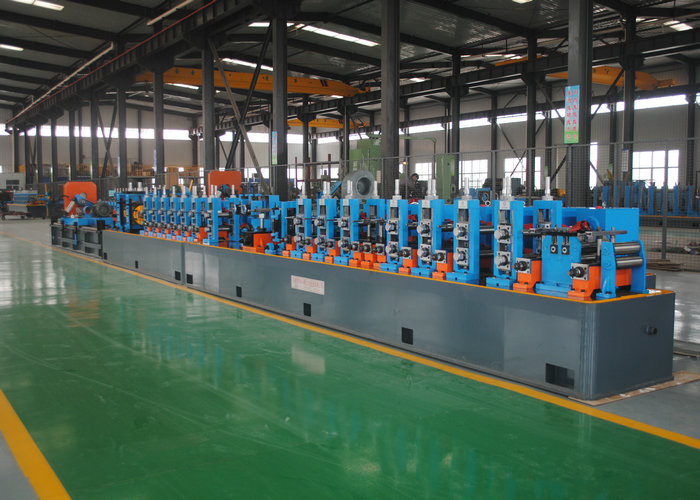

High Frequency Welded Pipe Mill 21-63mm Diameter CE ISO Certified

Name: High Frequency Welded Pipe Mill 21-63mm Diameter CE ISO Certified
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG60

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG60

Product Name:

High Frequency Welded Pipe Mill High Precision ERW Tube Mill / Straight Seam Welded ERW Pipe Mill Machine

Max.Thickness For Square Pipe:

0.8-3.0mm

Worm Gearing:

Max.80m/min

Certification:

CE ISO

Pipe Diameter:

21 - 63mm

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Keywords:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

High Precision erw mill

High Precision erw pipe plant

Straight Seam Welded erw tube mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

3 months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

30 set per year

Product Description

High Precision Straight Seam Welded ERW Pipe Mill Machine

Product Specifications

Attribute	Value
Product name	High Frequency Welded Pipe Mill High Precision ERW Tube Mill / Straight Seam Welded ERW Pipe Mill Machine
Max.Thickness for Square Pipe	0.8-3.0mm
Worm gearing	Max.80m/min
Certification	CE ISO
Pipe Diameter	21 - 63mm
Material	Carbon steel, stainless steel, low alloy steel

HG140 Adjustable Size High Frequency Welded Pipe ERW Pipe Mill

HG114 High-Frequency Welded Pipe Production Line is designed to produce welded pipes of 60~140mm in diameter and 1.5~5.0mm in wall thickness as well as square and rectangular pipes and deformed pipes of the corresponding size. This production line's each unit equipment makes full use of domestic and foreign similar equipment, featuring innovative design, advanced technology, convenient operation and maintenance, reaching international leading standards.

Adapt materials: Hot rolled or cold rolled steel strip (Low carbon steel and low alloy constructional steel, δs≤345Mpa, δb≤610Mpa)
Processing steel pipe size range:
- Round pipe: Φ60-Φ140mm (Thickness: 1.5-5.0mm)
- Square & Rectangular pipe: 50x50--110x110 (Thickness: 1.5-4.5mm)
Installed capacity: 800KVA
Water consumption: 50m³/h
Solid-state high-frequency Welder: 300KW or 400KW
Workshop requirements: 50m (L) × 12m (W) × 6m (H)
Forming speed: 40-60m/min

Technical Specifications

Model	Diameter(mm)	Thickness(mm)	Speed(m/min)	Main power(kw)	HF welder(KW)	Area(m²)
HG32	10-32	0.4-1.5	30-100	250	100	12x100
HG50	12-50	0.6-2.5	30-90	300	150	12x100
HG76	12-76	1-3	30-90	320	200	12x100
HG89	32-89	1-4	30-80	350	300	12x100
HG114	45-114	1.5-5.0	30-60	400	300	12x100
HG165	60-165	3-7	30-50	600	400	12x100
HG219	114-219	4-8	20-40	800	500	15x150
HG273	114-273	4-10	15-30	1000	600	18x160
HG325	165-325	4-10	10-30	1200	600	12x100
HG426	165-426	4-12.7	8-25	1400	800	12x100
HG508	219-508	4-16	8-20	2000	1000	12x100

Packaging & Shipping

Our Services

On-site installation and operator training by our engineers
One year quality guarantee with life-time repair service
Comprehensive pre-sale and after-sale services including workshop design and production output planning
Option for extended technical support with our engineers working on-site for several months to improve output and reduce costs
Complete project design services for stainless steel and carbon steel pipe production
Full responsibility for loading and shipping arrangements

For professional advice, contact our team.
