|Mill Speed:||30-100m/min||Material:||HRC,CRC,Galvanised Steel|
|Pipe Diamete:||25-76mm||Welding Type:||High Frequency Welding|
|Pipe Shape:||Round,square,rectangular||Adjustment Type:||By Turbine Worm|
pipe milling machine,
industrial tube mills

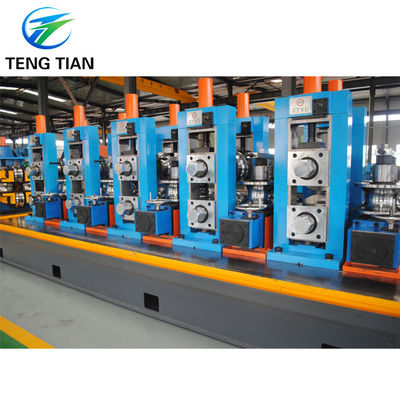

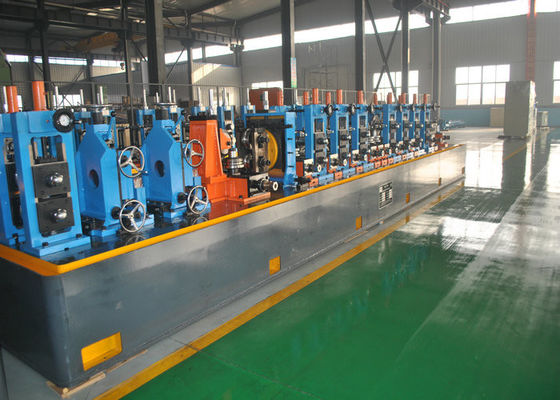

HG50 high precision high speed ERW pipe mill machine
The mill is used to manufacture of round pipe of Φ12mm-Φ38mm with thickness of 0.5mm-2.0mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.
The High precision tube mill has some advantage as follow:
between level roller jumps 0.01,between frame and slide clearance ≤0.02mm, frame vertical degree ≤0.05, each frame parallel degree ≤0.1mm
steel pipe diameter and roundness error≤0.08mm
material(steel coil)→uncoiler→shear and welder→horizontal(or cage) accumulator→forming mill→
HF soild welder→sizing mill→rounghly straightening(turkey head)→cut off machine→run out table
The Basic Parameters:
|stands of forming mill||7|
|stands of sizing mill||5|
|round pipe diameter||19-76mm|
|Round pipe thickness||1.5-3.0mm|
|square pipe size||15×15-60×60mm|
|square pipe thickness||1.5-2.0mm|
we can design the machine accoeding to the customer detail require.
ERW Tube Mill Other Model
|Model||Diameter Range||Pipe Thickness||Line Speed(m/min)|
General introduction of erw pipe mill
KJ Series Straight Seam High Frequency Steel erw pipe mill lines are used to manufacture welded steel pipes of diameter range from Φ7mm-Φ219mm, wall thickness range 0.2mm-8.0mm.
They are also used to produce profiled pipes within the limit of processing round pipes, such as the square pipes,rectangular pipes, oval pipes,etc.
After absorbing advanced pipe making technology from both abroad and domestic, our innovative designed production line is not only economical but also practical.
Applied raw material of erw pipe mill
Low carbon steel, low alloy steel, galvanized steel, stainless steel,etc.
1. Oil & Gas Pipes 7. Wire and Cable Protection Pipe
2. Heating Pipe 8. Structural Support Steel Pipe
3. Low-pressure Process Pipeline 9. Industrial Steel Pipes
4. Low Pressure Fire Fighting Pipeline 10. Decoration Pipe
5. Sewage Pipes 11. Water Pipe
6. Steel Scaffolding Pipe 12. Building pipe
1.) We will send the engineer for the installation and training your workers how to operate this machine
in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures
caused by human error, repair parts will be provided for free. After the quality guarantee period, only
charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you
to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping.
