Product Details:
Payment & Shipping Terms:
|
| Product Name: | Precision Tube Mill Automatic Precision Tube Mill PLC Control Low Carbon Steel Raw Material | Material: | HRC,CRC,Galvanised Steel |
|---|---|---|---|
| Pipe Diamete: | 25-76mm | Welding Type: | High Frequency Welding |
| Pipe Shape: | Round,square,rectangular | Adjustment Type: | By Turbine Worm |
| Keywords: | Precision Tube Mill | ||
| Highlight: | ss tube mill machine,pipe milling machine |
||
Packaging Details
This kind of machine should adopt nude packaging and sea shipping by container.
Delivery Time
Shipped in 45 days after payment

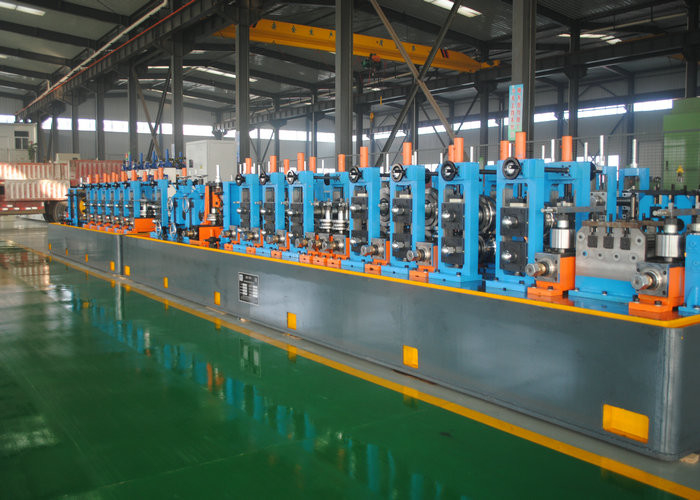

1. Description
This equipment is specially used for producingΦ20-Φ80mm, δ0.5-2.0mm high-frequency straight seam welded pipe and corresponding square pipe (17*17-62*62mm,1.2-3.0mm). The composition of equipment is from uncoiler to fixed length cutting saw. Rolling speed can be according to suitable range of pipe diameter and wall thickness.
2. Applicable material:
1 Raw material: Low-carbon steel,
3. Dimension range of processing steel tube:
1 O.D of pipe: Φ20-Φ80mm
2 Wall thickness: 1.0-3.5mm (square pipe :1.2-3.0mm)
4. Milling speed: 20-100M/min(choose different speed as per different pipe diameter and thickness)
5. Product (steel tube) process flow:
Raw material (steel coil) → uncoiling → shearing and end welding → material accumulating → non-power leveling → mill-forming → high-frequency welding → removing burrs outside of weld seam → cooling → sizing → roughly straightening → fixed length cutting → finishing tube
|
After-sales Service Provided |
Engineers available to service machinery overseas |
| Warranty | 1 year |
| Certification | ISO9001:2010 |
| Application | Used in Decoration,Furniture,Household, hand railing , industrial area etc |
| Pipe Material | Stainless steel / Carbon steel / Iron / Aluminum / Copper/ Galvanize etc |
| Type | Pipe mill |
| Diameter | 12-76mm |
| Thickness | 0.3-2.0mm |
| Horizontal shaft | 50mm |
| Vertical shaft | 30mm |
| Pipe shape | Round / Square / Rectangle |
| Welding type | Argon welding |
