ERW high frequency welding carbon steel water supply pipe production mill
Introduction

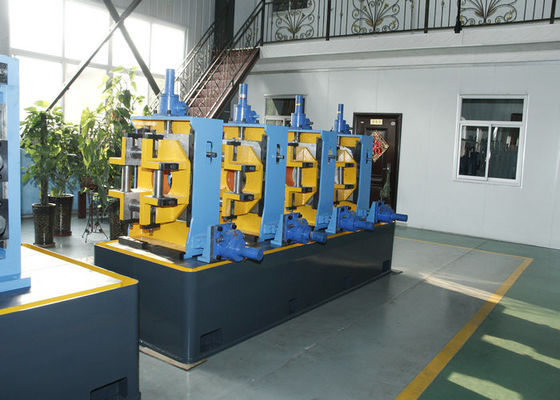

This equipment is specially used for producing Carbon High Frequency Welded Pipe Mill. It made by refined materials in high precision and equipped with fixed length cutting saw. The main machine includes forming, welding, sizing and straightening device. The composition of equipment is from decoiler to fixed length-cutting saw. Rolling speed can be adjusted correspondingly within suitable range of pipe diameter and wall thickness.
Process of the Production Line
Raw material (strip steel roll) – Material feeding – End cutting and butt welding (hand welding) – Strip storage cage – Material feeding and forming – High frequency welding – Removing outer burr – Cooling water jacket – Fix the diameter and straightening – Cut off with flying saw – Material unloading (Manually stow and bind up) – Inspection – Storehouse
Technical parameter
High frequency welded pipe mil
| Description | WB12 tube mill line |
WB25 tube mill line |
WB32 tube mill line |
WB50 tube mill line |
| Diameter of welded tubes | Φ7-25mm | Φ8-32mm | Φ13-50mm | Φ20-60mm |
| Wall thickness of welded tubes | 0.3-1.0mm | 0.4-1.5mm | 0.6-1.8mm | 0.8-2.7mm |
| Speed of tube welding | 90M/min | 90M/min | 90M/min | 70M/min |
| Power of major motor | 22KW | 37KW | 55KW | 75KW |
| Power of high frequency welder | 60KW | 60KW | 100KW |
100KW |
ERW Tube Mill Other Model
| Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
| HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
| HG32 | 10-32MM | 1.4-1.5MM | 120 |
| HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
| HG76 | 25-76MM | 1-4MM | 30-100 |
| HG89 | 32-89MM | 1-4.5MM | 30-80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
| HG165 | 60-165MM | 3-7MM | 30-50 |
| HG219 | 114-219MM | 4-8MM | 20-40 |
| HG273 | 114-273MM | 4-10MM | 15-30 |
| HG325 | 165-325MM | 4-10MM | 10-30 |
| HG426 | 165-426MM | 4-12.7MM | 8-25 |
| HG508 | 219-508MM | 4-16MM | 8-20 |
