Product Details:
Payment & Shipping Terms:
|
| Product Speed: | Max 50m/min | Pipe Diameter: | 21 - 63mm |
|---|---|---|---|
| Material: | Carbon Steel,stainless Steel,low Alloy Steel | Cutting Saw: | Friction Saw Cutting |
| Worm Gearing: | Max.80m/min | Pipe Thickness: | 4.0-10.0mm |
| High Light: | erw tube mill,stainless tube mills |
||
ERW pipe mill is used to produce API, EN,ASTM,GB/T etc pipe to transport water, gas and oil, also can produce construction pipe. The High frequency straight seam welded pipe mill is used to level the fixed strip after slitting line, and entry it to forming machine, bend to pipe by roller, melt the strip edges through the High frequency current, squeeze and weld the pipe by the squeeze roll. The high frequency pipe mill is also called ERW pipe mill.
Designed for the most precise fabrication of cold/hot-rolled coil, galvanized coil.The ERW pipe making machine provide the tightest tolerances for production.Produced round/square/rectangle pipe can be used at metllurgy, construction, transportation,machinery, automobile industry and more
Introduction

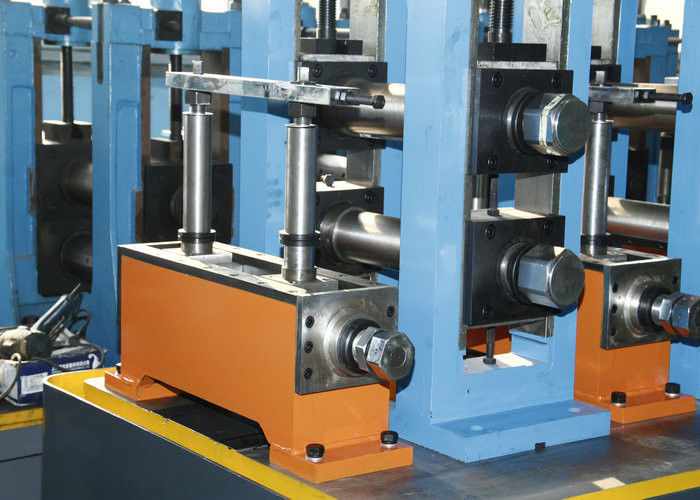

This equipment is specially used for producing Carbon High Frequency Welded Pipe Mill. It made by refined materials in high precision and equipped with fixed length cutting saw. The main machine includes forming, welding, sizing and straightening device. The composition of equipment is from decoiler to fixed length-cutting saw. Rolling speed can be adjusted correspondingly within suitable range of pipe diameter and wall thickness.
Process of the Production Line
Raw material (strip steel roll) – Material feeding – End cutting and butt welding (hand welding) – Strip storage cage – Material feeding and forming – High frequency welding – Removing outer burr – Cooling water jacket – Fix the diameter and straightening – Cut off with flying saw – Material unloading (Manually stow and bind up) – Inspection – Storehouse
Technical parameter
High frequency welded pipe mil
| Description | WB12 tube mill line |
WB25 tube mill line |
WB32 tube mill line |
WB50 tube mill line |
| Diameter of welded tubes | Φ7-25mm | Φ8-32mm | Φ13-50mm | Φ20-60mm |
| Wall thickness of welded tubes | 0.3-1.0mm | 0.4-1.5mm | 0.6-1.8mm | 0.8-2.7mm |
| Speed of tube welding | 90M/min | 90M/min | 90M/min | 70M/min |
| Power of major motor | 22KW | 37KW | 55KW | 75KW |
| Power of high frequency welder | 60KW | 60KW | 100KW |
100KW |
ERW Tube Mill Other Model
| Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
| HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
| HG32 | 10-32MM | 1.4-1.5MM | 120 |
| HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
| HG76 | 25-76MM | 1-4MM | 30-100 |
| HG89 | 32-89MM | 1-4.5MM | 30-80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
| HG165 | 60-165MM | 3-7MM | 30-50 |
| HG219 | 114-219MM | 4-8MM | 20-40 |
| HG273 | 114-273MM | 4-10MM | 15-30 |
| HG325 | 165-325MM | 4-10MM | 10-30 |
| HG426 | 165-426MM | 4-12.7MM | 8-25 |
| HG508 | 219-508MM | 4-16MM | 8-20 |
Our Services
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
