Home > products >
Welded Pipe Mill
>
High Precision ERW Tube Making Machine for 21-63mm Pipes
High Precision ERW Tube Making Machine for 21-63mm Pipes
  • High Precision ERW Tube Making Machine for 21-63mm Pipes
  • High Precision ERW Tube Making Machine for 21-63mm Pipes
  • High Precision ERW Tube Making Machine for 21-63mm Pipes

High Precision ERW Tube Making Machine for 21-63mm Pipes

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG76
Detail Information
Place of Origin:
HEBEI,CHINA
Brand Name:
Tengtian
Certification:
CE, ISO9001, BV
Model Number:
HG76
Product Name:
Straight Seam High Precision ERW Pipe Mill Tube Making Machine New Condition
Product Speed:
Max 50m/min
Pipe Diameter:
21 - 63mm
Material:
Carbon Steel,stainless Steel,low Alloy Steel
Cutting Saw:
Friction Saw Cutting
Worm Gearing:
Max.80m/min
Pipe Thickness:
4.0-10.0mm
Keywords:
Tube Making Machine
Highlight:

High Light

Highlight:

erw tube mill

,

slitting line machine

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
3 months
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
50 set per year
Product Description
Straight Seam High Precision ERW Pipe Mill Tube Making Machine
Product Specifications
Product Speed Max 50m/min
Pipe Diameter 21 - 63mm
Material Compatibility Carbon steel, Stainless steel, Low alloy steel
Cutting Saw Friction Saw Cutting
Worm Gearing Max. 80m/min
Pipe Thickness 4.0-10.0mm
Basic Components & Work Flow
Uncoiler → Shearing and butt-welder → Vertical-type accumulator → Forming, welding, sizing machine → Computer cutting saw → Run-out table
Scope of Supply
  • Machine installation & test running for Buyer
  • Operator training for Buyer's personnel
  • Reference documents in English (foundation drawings, circuit diagrams, operation instructions)
  • Additional rollers designed according to Buyer's specifications (Material: Cr12)
Sale Conditions
  • Packing: Sea worthy packing with mechanical parts in nude pack and electrical parts simply packed
  • Quality Assurance: Manufactured to relevant standards with thorough testing
  • Installation: Three engineers provided (Buyer covers travel, accommodation, and USD60/person/day salary)
  • Warranty: One year warranty after test running (excludes Buyer-caused issues) with lifelong technical support
Buyer Responsibilities
  • Foundation construction and electrical work
  • Machine wiring and piping (mechanical, water)
  • Lubricating/cooling oils and water supply
  • Safety equipment and consumables
  • Power, water, and gas supply to equipment interface (including 1.5 m³/min air compressor)
ERW Tube Mill Models
Model Diameter Range Pipe Thickness Line Speed (m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20
Product Images

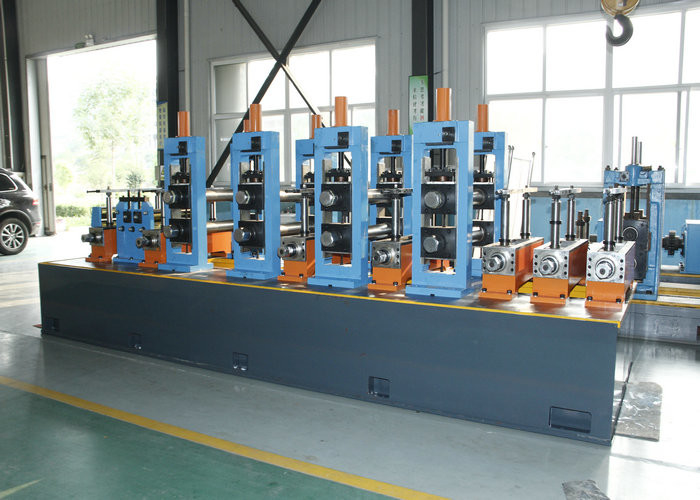

High Precision ERW Tube Making Machine for 21-63mm Pipes 0
High Precision ERW Tube Making Machine for 21-63mm Pipes 1
High Precision ERW Tube Making Machine for 21-63mm Pipes 2
High Precision ERW Tube Making Machine for 21-63mm Pipes 3
High Precision ERW Tube Making Machine for 21-63mm Pipes 4
Our Services
  • On-site engineer support for installation and operator training
  • One year quality guarantee with lifelong repair service (free parts during warranty for non-human error issues)
  • Comprehensive pre-sales (workshop design, production planning) and after-sales support
  • Extended engineer support available (months to 1 year) for production optimization
  • Complete project design services for stainless/carbon steel pipe production
  • Full responsibility for loading and shipping arrangements
