Product Details:
Payment & Shipping Terms:
|

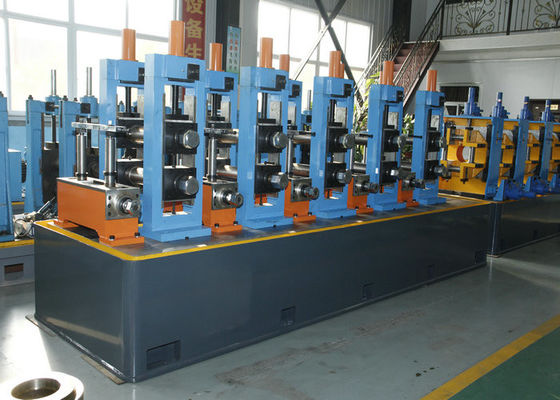

Product Name: | HF Welded ERW Pipe Mill Carbon Steel Erw Tube Mill With Friction Saw Cutting | Product Speed: | Max 50m/min |
---|---|---|---|
Pipe Diameter: | 21 - 63mm | Material: | Carbon Steel,stainless Steel,low Alloy Steel |
Cutting Saw: | Friction Saw Cutting | Worm Gearing: | Max.80m/min |
Pipe Thickness: | 4.0-10.0mm | Keywords: | ERW Pipe Mill Carbon Steel |
Highlight: | erw tube mill,stainless tube mills |
Scope of Supply:
1) Machine installation & test running for Buyer.
2) Sufficiently train operation method to Buyer's operators.
3) Reference document (in English): foundation drawing (including the arrangement of water, electricity and air etc.), circuit diagram and operation instruction, etc
4) Additional Rollers for welded pipe will be ordered and designed according to type and specification provided by Buyer.
Material: Cr12
Sale conditions
1) Packing: Sea worthy packing, the mechanical parts are in nude pack, and the electrical arts and the spare parts are simply packed.
2) Quality Assurance: the Seller manufactures the equipment according to the relevant standards strictly and tests the equipment according to the technical documents.
3) Installation: three engineers will be dispatched to Buyer factory for installation and test running. The buyer should charge of return ticket, food and accommodation abroad and pay USD60/person/day for salary.
4) Warranty: we guarantee one year’s warranty after test running. (The matters caused by Buyer’s fault and the lack of Buyer’s maintenance shall not be covered). And we offer lifelong technical service and fast-response technical support to Buyer.
Scope of work excluded (Buyer scope)
1) Foundation construction and electric appliance work, civil engineering and necessary materials.
2) Machine to machine wire, mechanical pipe, water pipe;
3) Lubricating oil, cycle oil, gear box oil, cooling circulating water
4) D .Safety appliance, out of standard security items
5) Test run material, magnetic rod, bearing etc. low value consumables.
6) The buyer is responsible for power supply, water supply and gas supply to the equipment interface connector. Air compressor (1.5 cubic meters/minutes)
ERW Tube Mill Other Model
Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
HG32 | 10-32MM | 1.4-1.5MM | 120 |
HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
HG76 | 25-76MM | 1-4MM | 30-100 |
HG89 | 32-89MM | 1-4.5MM | 30-80 |
HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
HG165 | 60-165MM | 3-7MM | 30-50 |
HG219 | 114-219MM | 4-8MM | 20-40 |
HG273 | 114-273MM | 4-10MM | 15-30 |
HG325 | 165-325MM | 4-10MM | 10-30 |
HG426 | 165-426MM | 4-12.7MM | 8-25 |
HG508 | 219-508MM | 4-16MM | 8-20 |
Technical Process
PIPE APPLICATION
1) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6) We will be responsible for the loading and shipping.
