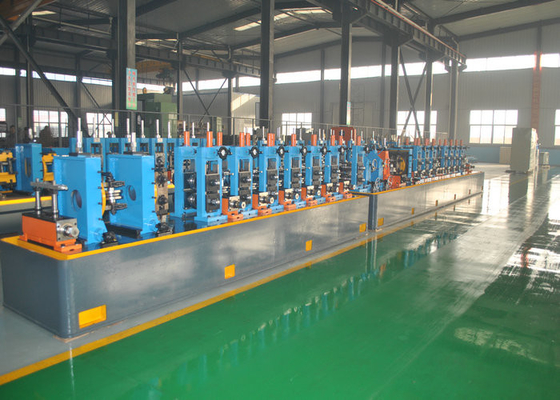

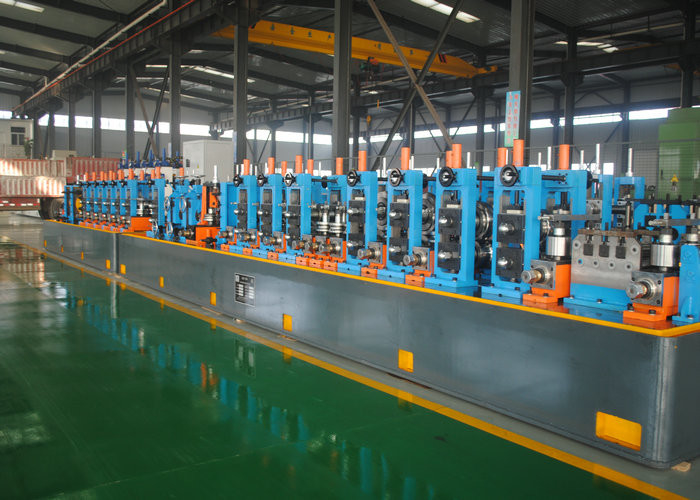

Precision Tube Mill ERW Pipe Machine 25-76mm Diameter

Name: Precision Tube Mill ERW Pipe Machine 25-76mm Diameter
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG60

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG60

Product Name:

Precision Tube Mill , ERW Pipe Machine 30-100m/Min Speed

Pipe Diamete:

25-76mm

Welding Type:

High Frequency Welding

Pipe Shape:

Round,square,rectangular

Adjustment Type:

By Turbine Worm

Mill Speed:

30-100m/min

Keywords:

Precision Tube Mill

Highlight:

High Light

Highlight:

ss tube mill machine

pipe milling machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

70 work days/Year

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

35 Sets

Product Description

Precision Tube Mill, ERW Pipe Machine 30-100m/Min Speed

Key Specifications

Pipe Diameter	25-76mm
Welding Type	High Frequency Welding
Pipe Shape	Round, Square, Rectangular
Adjustment Type	By Turbine Worm
Mill Speed	30-100m/min

Product Advantages

Exceptional flexibility allowing tube dimension modification without roll changes within the mill size range
Significantly reduced mill setup time and elimination of roll set costs
Minimal maintenance requirements with easy operation
Increased productivity with reduced stock and associated costs
Automated mill operation and adjustments reducing manpower requirements
PLC automatic control system for easy setup of all production parameters
Average material cost reduction of 2.4-3% compared to Round-to-Square change methods

Stainless Steel Capillary Welded Pipe Production Equipment

Model	Diameter	Wall Thickness	Production Capacity	Main Power	Tube Precision	Main Engine Size (L×W×H)
GH10	∅4-10mm	0.15-0.8mm	5~12M/min	4kw	±0.05mm	4300x600x725

Product Description

The HG273 mill manufactures round pipes of Φ114mm-Φ273mm with thickness of 4.0mm-10mm from cold-rolled and hot-rolled coil strips. The process includes forming unclosed tubular blanks, high-frequency welding, cooling, sizing/shaping, and cutting to length.

Precision Specifications

Level roller jumps: 0.01mm
Frame and slide clearance: ≤0.02mm
Frame vertical degree: ≤0.05mm
Frame parallel degree: ≤0.1mm
Steel pipe diameter and roundness error: ≤0.08mm

Production Process

material(steel coil) → uncoiler → shear and welder → horizontal(or cage) accumulator → forming mill → HF solid welder → sizing mill → roughly straightening(turkey head) → cut off machine → run out table

Basic Parameters

Stands of Forming Mill	7
Stands of Sizing Mill	5
Shaft Material	40Cr
Round Pipe Diameter	19-76mm
Round Pipe Thickness	1.5-3.0mm
Square Pipe Size	15×15-60×60mm
Square Pipe Thickness	1.5-2.0mm

Machines can be customized according to customer requirements.

ERW Tube Mill Model Range

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

Compatible materials: Low carbon steel, low alloy steel, galvanized steel, stainless steel.

More>>

Our Customers

Our Services

On-site engineer support for installation and operator training
One year quality guarantee with lifetime repair support
Comprehensive pre-sales and after-sales service including workshop design and production output planning
Option for extended engineer support (several months to 1 year) to optimize output and reduce costs
Complete project design services for stainless steel and carbon steel pipe production
Responsible for loading and shipping arrangements
