Product Details:
Payment & Shipping Terms:
|
Material: | HRC,CRC,Galvanised Steel | Pipe Diamete: | 25-76mm |
---|---|---|---|
Welding Type: | High Frequency Welding | Pipe Shape: | Round,square,rectangular |
Adjustment Type: | By Turbine Worm | Mill Speed: | 30-100m/min |
High Light: | ss tube mill machine,industrial tube mills |
Product Description

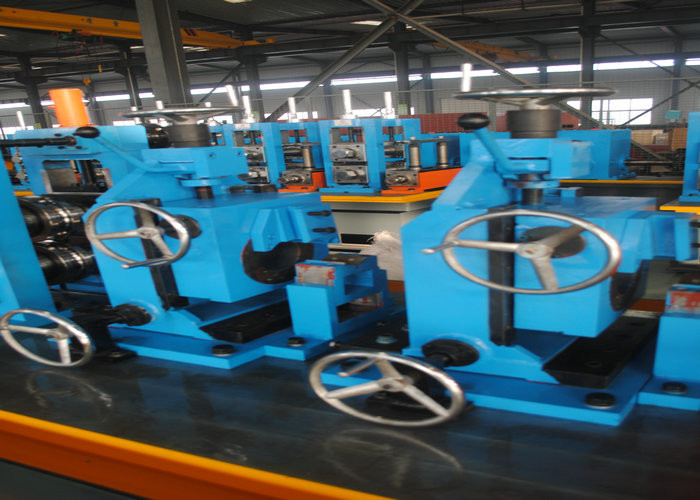

tube mill is a series of tube machines that builds longitudinal weld seam tube with steel strips of certain width. tube mill starts by uncoil and flatten the slit steel coils into steel strips. The flattened steel strips will be inserted into the tube mill forming machine and the rollers in the tube mill will bend the strip to a round tube shape. The round tube mill machine then be sent into the weld box where the tube is welded by a high frequency or solid state welder. The tube mill be formed to expected shape (round/ square/ rectangle etc) or size in a sizing machine. Finally the tube will be cut to length and bundled.
The HG273 mill is used to manufacture of round pipe of Φ114mm-Φ273mm with thickness of 4.0mm-10mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.
The High precision tube mill has some advantages as follow:
between level roller jumps 0.01,between frame and slide clearance ≤0.02mm, frame vertical degree ≤0.05, each frame parallel degree ≤0.1mm
steel pipe diameter and roundness error≤0.08mm.
Product Process:
material(steel coil)→uncoiler→shear and welder→horizontal(or cage) accumulator→forming mill→
HF soild welder→sizing mill→rounghly straightening(turkey head)→cut off machine→run out table
Below is a standard flow chart and itemized equipment of our tube mill.
The Basic Parameters:
stands of forming mill | 7 |
stands of sizing mill | 5 |
shaft material | 40Cr |
round pipe diameter | 19-76mm |
Round pipe thickness | 1.5-3.0mm |
square pipe size | 15×15-60×60mm |
square pipe thickness | 1.5-2.0mm |
Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
HG32 | 10-32MM | 1.4-1.5MM | 120 |
HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
HG76 | 25-76MM | 1-4MM | 30-100 |
HG89 | 32-89MM | 1-4.5MM | 30-80 |
HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
HG165 | 60-165MM | 3-7MM | 30-50 |
HG219 | 114-219MM | 4-8MM | 20-40 |
HG273 | 114-273MM | 4-10MM | 15-30 |
HG325 | 165-325MM | 4-10MM | 10-30 |
HG426 | 165-426MM | 4-12.7MM | 8-25 |
HG508 | 219-508MM | 4-16MM | 8-20 |
Low carbon steel, low alloy steel, galvanized steel, stainless steel,etc.Applied raw material of erw pipe mill
1. Oil & Gas Pipes 7. Wire and Cable Protection Pipe
2. Heating Pipe 8. Structural Support Steel Pipe
3. Low-pressure Process Pipeline 9. Industrial Steel Pipes
4. Low Pressure Fire Fighting Pipeline 10. Decoration Pipe
5. Sewage Pipes 11. Water Pipe
6. Steel Scaffolding Pipe 12. Building pipe
Our Services
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service. pre-sell service: workshop design, and production output design after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping. |
