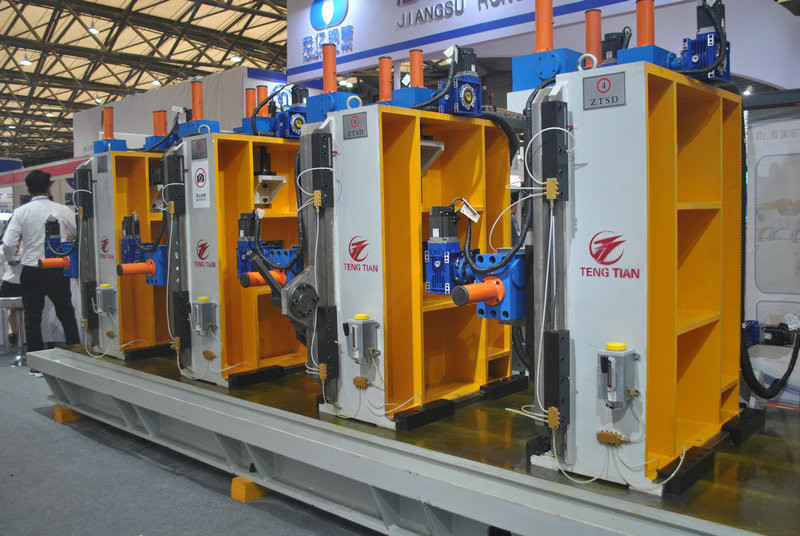

Automatic Square size 30X30-80X80mm Thickness1-4mm ERW tube making machine

Automatic Square size 30X30-80X80mm Thickness1-4mm ERW tube making machine
Automatic Square size 30X30-80X80mm Thickness1-4mm ERW tube making machine Automatic Square size 30X30-80X80mm Thickness1-4mm ERW tube making machine Automatic Square size 30X30-80X80mm Thickness1-4mm ERW tube making machine

Large Image :  Automatic Square size 30X30-80X80mm Thickness1-4mm ERW tube making machine

Product Details:
Place of Origin: CHINA
Brand Name: TENGTIAN
Certification: ISO/BV/CE
Model Number: HG
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Seaworthy packing
Delivery Time: 3 months
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 units a year
Detailed Product Description
Pipe Material: Carbon Steel Voltage: 380V
Pipe Shape: Square Pipe Diameter: 30X30-80X80mm
Thickness: 1-4mm Speed: 30-80M/min
High Light:

erw tube mill

,

stainless tube mills



Automatic Square size 30X30-80X80mm Thickness1-4mm ERW tube making machine



Product Information

High speed tube mill erw steel pipe making machine: At first, the coil is loaded at the uncoiler, then but-welding the ends of coil, delivering to accumulator. After accumulator, the strip is pulled from accumulator contentiously by fixed speed, is formed to opened-pipe at forming machine, then welded by High frequency welder, deburred, cooled, shaped and sized as round pipe and rectangular&square pipe at the sizing area. Then the sized pipe is straightened after Turkey-head device and then cutt to fixed length by flying saw. At last, the fixed pipe is delivered from run-out table and inspected at the table.

This line could produce the round pipe, the rectangular and square pipe by material of cold/hot-rolled coil etc. It could be used at the metallurgy, construction, transportation, machinery, automobile industry. Adopting “W” forming type, it could make much more reasonable force, and much more perfect forming shape at each stand etc.



Parameter Table

Model

Diameter Range Pipe Thickness Molding speed(m/min) MotorPower(KW)

HG20

8-20MM

0.3-1MM 30-120 55
HG32 12-32MM 0.3-2.0MM 30-120 75
HG50 16-50MM 0.8-2.5MM 30-110 110

HG60

20-60MM 0.8-3.0MM 30-100 132
HG76 12-76MM 1-3MM 30-100 320
HG89 32-89MM 1-4MM 30-80 350
HG114 45-114MM 1.5-5.0MM 30-60 400
HG165 60-165MM 3-7MM 30-50 600
HG219 114-219MM 4-8MM 20-40 800
HG273 114-273MM 4-10MM 15-30 1000
HG235 165-235MM 4-12MM 10-30 1200
HG426 165-426MM 4-16MM 8-25 1400
HG508 219-508MM 4-20MM 8-20 2000


BUSINESS RANGE


1. Approx. 25 years experience of R&D,manufacture, EPC expert, and on-site after-sales service supply:
- ERW pipe mill mould rollers die.
- High precision steel coil slitting & cut to length machine
- Hot dip galvanizing plant for steel pipe, steel structrue
- Cold forming section steel machine
- HF welding H-beam production line.
2. Professional exporter, with reasonable price and quality products:
- Flat rolled product: HR plate, HRC, CRC, Galvanized Coil, PPGI.
- Long products: steel pipe, angle steel, and channel steel.
- Stainless products: stainless steel sheet/pipe/ fittings, valves and flanges.



Our Advantage


TENGTIAN factory covering 224000 sq.m, own advanced processing facility about 300 sets.
In recent 3 years, average throughput value is 150 million RMB, including average 40 million RMB for mould sets, the throughput value is going up by rate of 10%.



Our Market

Our group business covering fields of metallurgy, fabrication and construction, traffic engineering, mechanism and vehicle industry. Our business relationships mainly distribute in Southeast Asia, the Middle East, Africa, Eastern Europe, South America.
To learn more or discuss your projects with our experts, welcome to contact us now!
Our Service

a.Work out reasonable investment scheme, selecting rational model unit.
b.Provide free equipment layout, factory planning for you.
c.Provide free equipment foundation and drawing. If necessary, offer technical guidance on-site for equipment
d.foundation construction.
e.Provide equipment installation and commissioning, ensure the normal operation of production line.
f.Provide professional technical training to help your staff familiar with the equipment ASAP.

FAQ

Q:Are you manufacturer?
A:Yes,we are manufacturer.We have 2 factories and our own technical team.Welcome to visit us.



Q:What kind o f payment term you can do?

A: We can accept T/T and L/C.



Q:What info you need before you make the proposal?
A:The pipe diameter , thickness range , usage, raw material steel grade, coil weight and automatic degree.



Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant for pre-sales service.Also we can help you to solve the raw material (steel coil) purchase,worker training,international market price.



Q:How do you do QA?
A:We have special team to do strict QA,this is one of our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of tolerance critical parts will be inspected for all dimensions.



Q:Why I should choose you,what are the differences between you and other Chinese suppliers?
A:We are concentrate on this industry for more than 20 years,and especially in pipe making machines. Our pipe making machine line directly export to Russia,Vietnam,India,Indonesia,and many other countries in Asia, Africa, middle east and South America.



About Us

Our company is specializing in the production of high-frequency welded pipe,slitting,opening cold bend steel,stainless steel units and other equipment of the enterprise,the company has a skilled and business ability strong vibrant team.Automatic Square size 30X30-80X80mm Thickness1-4mm ERW tube making machine 0

Automatic Square size 30X30-80X80mm Thickness1-4mm ERW tube making machine 1
