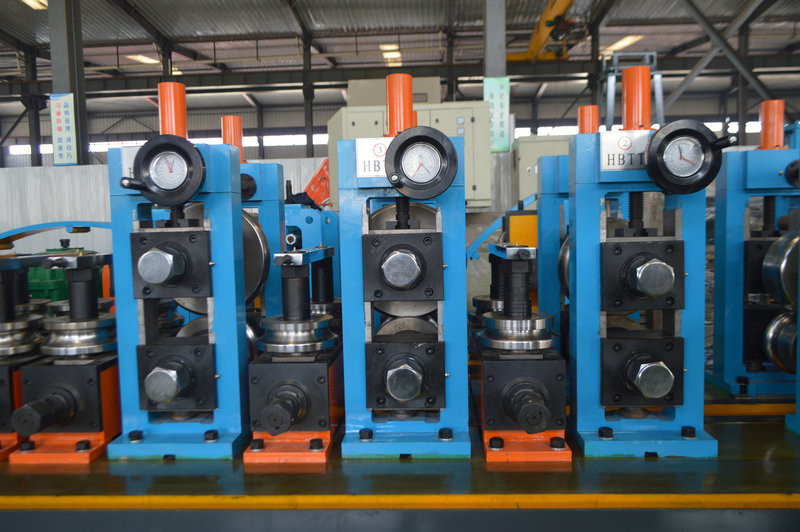

Carbon Steel High Frequency Welded ERW Tube Mill 25-76mm

This equipment is specially designed for producing high-frequency straight seam welded pipes (Φ20-Φ80mm, δ1-4.0mm) and corresponding square pipes (17*17-62*62mm, 1.2-3.0mm). The complete system includes components from uncoiler to fixed length cutting saw, with rolling speed adjustable according to pipe diameter and wall thickness requirements.

• Raw material: Low-carbon steel
• Thickness of steel strip: 1.0-3.5mm
• Width of steel strip: 60-240mm
• I.D. of steel coil: Φ450-Φ550mm
• O.D. of steel coil: Φ800-Φ1200mm
• Maximum weight coil: 2500kgs

• O.D of pipe: Φ20-Φ80mm
• Wall thickness: 1.0-3.5mm (square pipe: 1.2-3.0mm)
• Length: 4-8m
• Milling speed: 60-70m/min
• High-frequency equipment power: 250 KW (Solid state)
• Voltage: 380V/440V, 50HZ

• Uncoiler: 1 set
• Shearing and butt-welder: 1 set
• Accumulator: 1 set
• Forming, Welding & sizing unit: 1 set
• Computer-controlled tracking cutting saw: 1 set
• Run-out table: 1 set
• Solid-state high-frequency welder: 1 set

• Installation & Training: We provide engineers for machine installation and operator training.
• Warranty: One year quality guarantee with life-time repair support. Free repair parts during warranty period (excluding human error).
• Comprehensive Support: Pre-sales services including workshop design and production output planning.
• Extended Technical Support: Option for engineers to work on-site for several months to optimize production efficiency.
• Project Design: Complete project planning for stainless steel or carbon steel pipe production.
• Logistics: We handle all loading and shipping arrangements.
