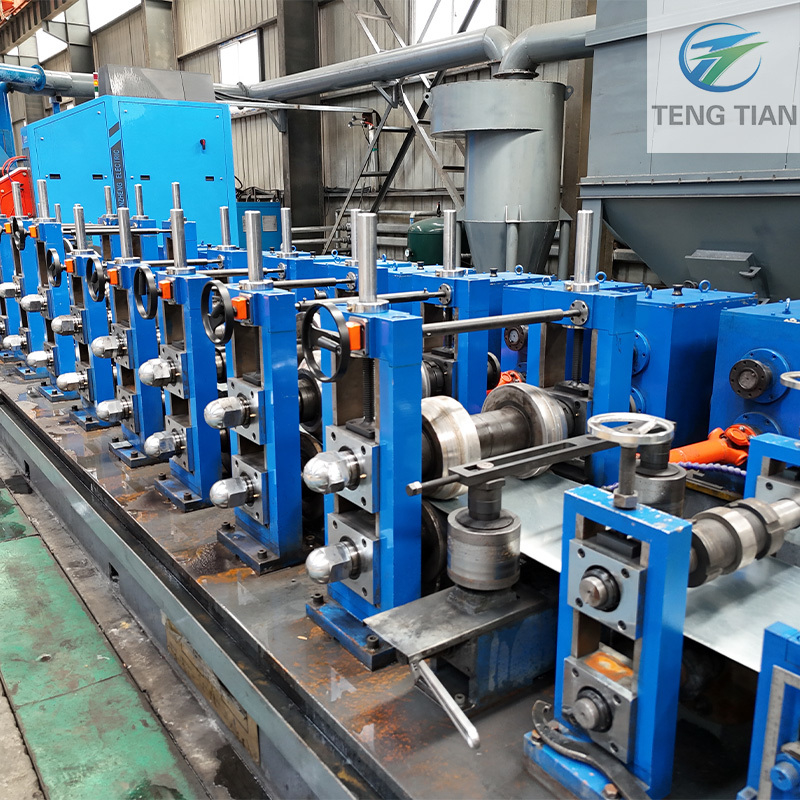

High Frequency ERW Tube Mill for 32-89mm Steel Pipes
  • High Frequency ERW Tube Mill for 32-89mm Steel Pipes
  • High Frequency ERW Tube Mill for 32-89mm Steel Pipes
  • High Frequency ERW Tube Mill for 32-89mm Steel Pipes
  • High Frequency ERW Tube Mill for 32-89mm Steel Pipes

High Frequency ERW Tube Mill for 32-89mm Steel Pipes

Product Details:
Place of Origin: CHINA
Brand Name: TENGTIAN
Certification: ISO/BV/CE
Model Number: HG89
Detail Information
Place of Origin:
CHINA
Brand Name:
TENGTIAN
Certification:
ISO/BV/CE
Model Number:
HG89
Product Name:
High Frequency Steel Straight Seam Pipe Welding Line / Tube Mill
Voltage:
380V
Power:
350kw
Pipe Diameter:
32-89mm
Thickness:
1-4.5mm
Speed:
30-80m/min
Material:
Galvanized Steel Coil,CR Carbon Steel
Pipe Shape:
Round,square
Color:
Blue
Keywords:
Pipe Welding Line
Highlight:

High Light

Highlight:

erw tube mill

,

slitting line machine

Trading Information
Minimum Order Quantity:
1SET
Price:
$100000 to $1 million
Packaging Details:
Seaworthy packing
Delivery Time:
three months
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
120sets one year
Product Description
High Frequency Steel Straight Seam Pipe Welding Line / Tube Mill
Product Specifications
Attribute Value
Voltage 380V
Power 350kw
Pipe diameter 32-89mm
Thickness 1-4.5mm
Speed 30-80m/min
Material Galvanized steel coil, CR Carbon Steel
Pipe shape Round, square
Product Description
The high frequency straight seam tube mill is designed for manufacturing high frequency straight seam welded tubes, square tubes, and special shaped tubes. This production line features advanced pass technology and PLC automatic control system, offering stable operation, easy maintenance, and industry-leading structural precision.
The HG-89 ERW tube mill produces steel pipes with diameters ranging from Φ32mm-89mm and thickness of 1.0-4.5mm at speeds of 30-80m/min. Custom configurations are available for higher speed requirements. The mill utilizes "W" forming process technology, ensuring optimal force distribution and material deformation throughout the forming process.
Production Process
  • Scroll up
  • Uncoil
  • Flattening
  • End Shear & Butt Welding
  • Accumulator
  • Forming
  • High-frequency induction welding
  • Removing external burr
  • Cooling
  • Sizing
  • Cutting
  • Checking & Collecting
  • Accessing Warehouse
ERW Tube Mill Models
Model Diameter Range Pipe Thickness Molding speed (m/min) Motor Power (KW) Mechanical area (m³)
HG20 8-20MM 0.3-1MM 30-120 55 7×50
HG32 12-32MM 0.3-2.0MM 30-120 75 7×50
HG50 16-50MM 0.8-2.5MM 30-110 110 7×60
HG60 20-60MM 0.8-3MM 30-100 132 7×65
HG76 12-76MM 1-3MM 30-100 320 8×80
HG89 32-89MM 1-4MM 30-80 350 8×80
HG114 45-114MM 1.5-5.0MM 30-60 400 10×100
HG165 60-165MM 3-7MM 30-50 600 10×110
HG219 114-219MM 4-8MM 20-40 800 12×150
HG273 114-273MM 4-10MM 15-30 1000 18×160
HG325 165-325MM 4-12MM 10-30 1200 18×180
HG426 165-426MM 4-16MM 8-25 1400 18×180
HG508 219-508MM 4-20MM 8-20 2000 21×180
Our Services
  • On-site installation and operator training by our engineers
  • One year quality guarantee with lifetime repair service
  • Comprehensive pre-sale and after-sale support
  • Project design services for stainless steel and carbon steel pipe production
  • Extended engineering support available (several months to 1 year)
  • Responsible for loading and shipping arrangements
