Home > products >
ERW Pipe Mill
>
ERW Carbon Steel Pipe Mill 21-63mm Diameter 100m/min Speed
  • ERW Carbon Steel Pipe Mill 21-63mm Diameter 100m/min Speed
  • ERW Carbon Steel Pipe Mill 21-63mm Diameter 100m/min Speed
  • ERW Carbon Steel Pipe Mill 21-63mm Diameter 100m/min Speed

ERW Carbon Steel Pipe Mill 21-63mm Diameter 100m/min Speed

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG60
Detail Information
Place of Origin:
HEBEI,CHINA
Brand Name:
Tengtian
Certification:
CE, ISO9001, BV
Model Number:
HG60
Product Name:
Professional Iron Welded Tube Mill , High Frequency Carbon Steel Pipe Mill
Material:
Carbon Steel,stainless Steel,low Alloy Steel
Pipe Diameter:
21 - 63mm
Product Speed:
Max 100m/min
Max.Thickness For Square Pipe:
0.8-3.0mm
Certification:
CE ISO
Roller:
Cr12/SKD11
Keywords:
Carbon Steel Pipe Mill
Highlight:

High Light

Highlight:

stainless tube mills

,

slitting line machine

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
2.5 months
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
50 set per year
Product Description
Professional Iron Welded Tube Mill, High Frequency Carbon Steel Pipe Mill
Product Specifications
Attribute Value
Material Carbon steel, stainless steel, low alloy steel
Pipe Diameter 21 - 63mm
Product Speed Max 100m/min
Max. Thickness for Square Pipe 0.8-3.0mm
Certification CE ISO
Roller Cr12/SKD11
Product Description

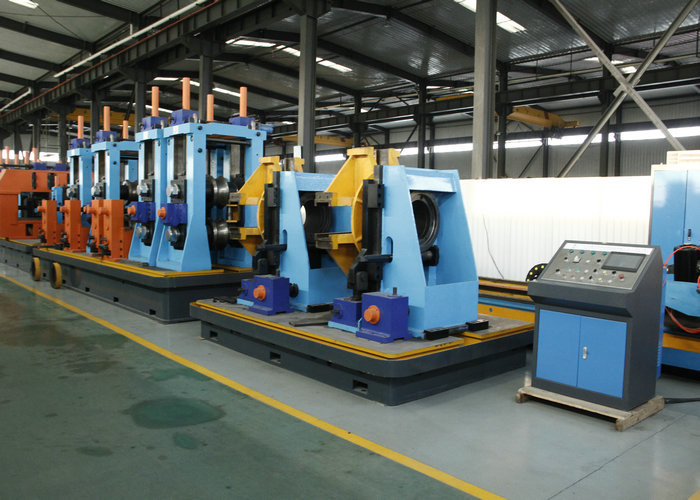

This ERW pipe making machine levels the fixed strip after the slitting line and feeds it into the forming machine. The strip is bent into pipe shape by rollers, with the edges melted through high frequency current and welded together by squeeze rolls. Also known as high frequency pipe mill.

ERW Pipe Making Machine Technical Process
  • Loading coil

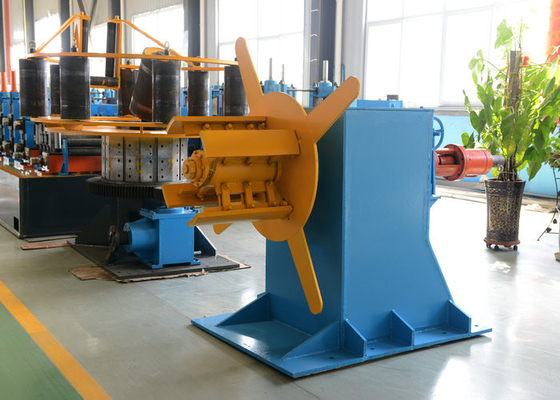

  • Uncoiler
  • Leveling
  • Shearing and butt welding
  • Accumulator
  • Forming
  • HF welding
  • Intermediate annealing
  • Air cooling
  • Water cooling
  • Sizing
  • Cutting
  • End facing and chamfering
  • Hydraulic testing
  • UT testing
  • Marking
  • Storing
ERW Tube Mill Models
Model Diameter Range Pipe Thickness Line Speed (m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20
ERW Carbon Steel Pipe Mill 21-63mm Diameter 100m/min Speed 0 ERW Carbon Steel Pipe Mill 21-63mm Diameter 100m/min Speed 1
