Product Details:
Payment & Shipping Terms:
|

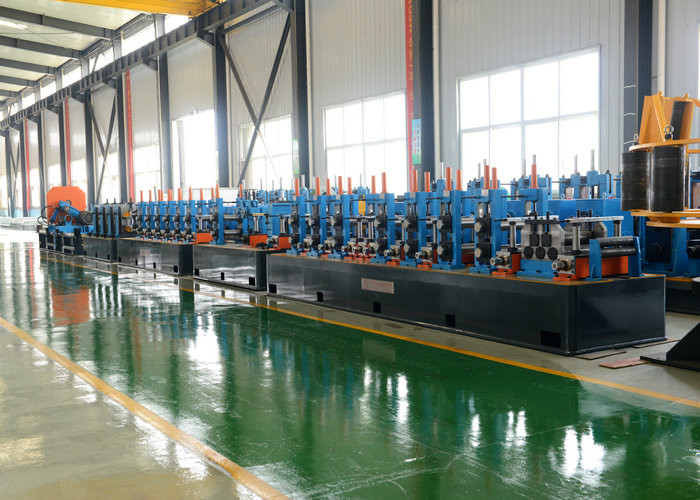

| Product Name: | PLC Control Carbon Steel Tube Mill Machine Round / Square Pipe Making Machine | Pipe Diameter: | 25-76mm |
|---|---|---|---|
| Product Speed: | Max 50m/min | Material: | Carbon Steel,stainless Steel,low Alloy Steel |
| Cutting Saw: | Friction Saw Cutting | Worm Gearing: | Max.80m/min |
| Pipe Thickness: | 4.0-10.0mm | Keywords: | Carbon Steel Tube Mill Machine |
| Highlight: | stainless tube mills,slitting line machine |
||
The whole production line work flow like:
Raw material→ uncoiling → shearing and butt-welding → accumulator →leveling→ mill-forming →high-frequency welding → deburring → cooling(water colling) → sizing →straightening → fixed length cutting → run-out table
From the work flow we can see that it's a long production line, need about 50m length and 3m height workshop to start the machine.
We can provide the whole machine units for clients, and make the layout according to client's workshop design. The normal cutting length will be 6m and 9m, the flying saw can track the pipe and cutting to length with the PLC control command.
| The main type for welded pipe roll forming machine | |||
| Machine HG-32 | Machine HG-50 | ||
| Wall thickness | 0.4-2.5mm | Wall thickness | 0.4-2.5mm |
| Pipe diameter | 10-45mm | Pipe diameter | 10-45mm |
| Round pipe |
Max. OD-45mm, Min.OD-10mm |
Round pipe |
Max. OD-45mm, Min.OD-10mm |
| Square pipe |
Max.-35*35mm, Min.-10*10mm |
Square pipe |
Max.-35*35mm, Min.-10*10mm |
| Rectangular pipe |
Max.-30*40mm, Min,-10*10mm |
Rectangular pipe |
Max.-30*40mm, Min,-10*10mm |
| Machine HG-76 | Machine HG-127 | ||
| Wall thickness | 0.4-2.5mm | Wall thickness | 0.4-2.5mm |
| Pipe diameter | 10-45mm | Pipe diameter | 10-45mm |
| Round pipe |
Max. OD-45mm, Min.OD-10mm |
Round pipe |
Max. OD-45mm, Min.OD-10mm |
| Square pipe |
Max.-35*35mm, Min.-10*10mm |
Square pipe |
Max.-35*35mm, Min.-10*10mm |
| Rectangular pipe |
Max.-30*40mm, Min,-10*10mm |
Rectangular pipe |
Max.-30*40mm, Min,-10*10mm |
ERW Tube Mill Other Model
| Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
| HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
| HG32 | 10-32MM | 1.4-1.5MM | 120 |
| HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
| HG76 | 25-76MM | 1-4MM | 30-100 |
| HG89 | 32-89MM | 1-4.5MM | 30-80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
| HG165 | 60-165MM | 3-7MM | 30-50 |
| HG219 | 114-219MM | 4-8MM | 20-40 |
| HG273 | 114-273MM | 4-10MM | 15-30 |
| HG325 | 165-325MM | 4-10MM | 10-30 |
| HG426 | 165-426MM | 4-12.7MM | 8-25 |
| HG508 | 219-508MM | 4-16MM | 8-20 |
Our Services
Quality Assurance
we Shall be responsilbe for quality problem resulted from design and manufacture with one year after successfull installation and debugging and all the expenses for replacing parts and components( exclude human factors and vulerable components ) shall be born by us !
Debugging
1) Factory will send 1-2technical engineers for installation and testing operation
2) The site, the equipment foundation, cool constructions etc. responsible by buyer according to equipment material which provides by supplier, the equipment for installation (lift equipment, tool etc.), the installation accessory material (wire, drive pipe, water pipe and so on), the labor force arranged by the buyer.
3) The buyer is responsible for power supply, water supply and gas supply to the equipment interface connector
4) Buyer Preparation Notes
(a)Machinery device takes the location (length* width)
(b)Power supply: Main power to equipment control bench, unit position
(c) Air feed: Air compressor (1.5 cubic meters/minutes
(d) Water supply: Water source to machine station
