Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel,stainless Steel,low Alloy Steel | Pipe Diameter: | 21 - 63mm |
|---|---|---|---|
| Product Speed: | Max 50m/min | Max.Thickness For Square Pipe: | 0.8-3.0mm |
| Certification: | CE ISO | Worm Gearing: | Max.80m/min |

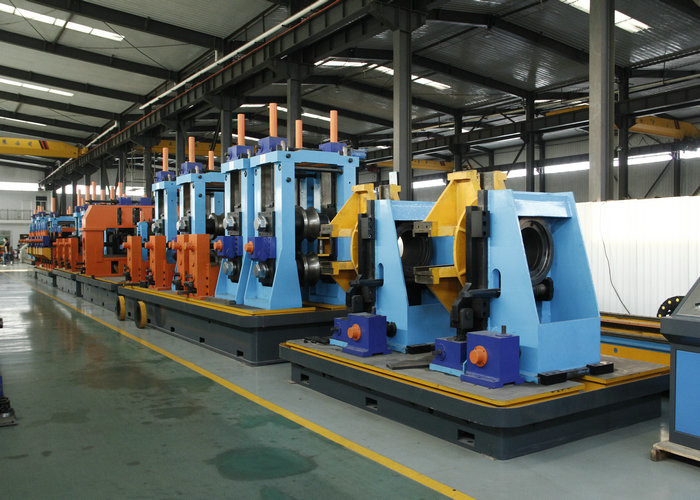

| Name: | Tube Mill Machine | ||
| Highlight: | carbon steel tube mill,tube making machine |
||
| Model | HG76 enlarge to 114 | |
| Size | 60*6*1.8m | |
| Weight | 41T | |
| Power of machine | 600kw | |
| Voltage | 380v,customizable | |
|
Produce Capacity
|
Square pipe thickness | δ1.0~3.0mm |
| Round pipe thickness | δ1.0~3.5mm | |
| Round pipe diameter | Φ38mm~Φ114mm | |
| Square tube size | 30×30~90×90mm | |
| Produce speed | 0M/min~100M/min | |
| Length | 4m~8m | |
| Steel Strips | Thickness of strips | δ1.0~3.5mm |
| Width of strips | H160~400mm | |
| O.D. of steel coil | Φ800mm~Φ1500mm | |
| I.D. of steel coil | Φ450mm~Φ550mm | |
| Maxi. Load weight | ≤6000kgs | |
| Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
| HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
| HG32 | 10-32MM | 1.4-1.5MM | 120 |
| HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
| HG76 | 25-76MM | 1-4MM | 30-100 |
| HG89 | 32-89MM | 1-4.5MM | 30-80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
| HG165 | 60-165MM | 3-7MM | 30-50 |
| HG219 | 114-219MM | 4-8MM | 20-40 |
| HG273 | 114-273MM | 4-10MM | 15-30 |
| HG325 | 165-325MM | 4-10MM | 10-30 |
| HG426 | 165-426MM | 4-12.7MM | 8-25 |
| HG508 | 219-508MM | 4-16MM |
8-20 |
