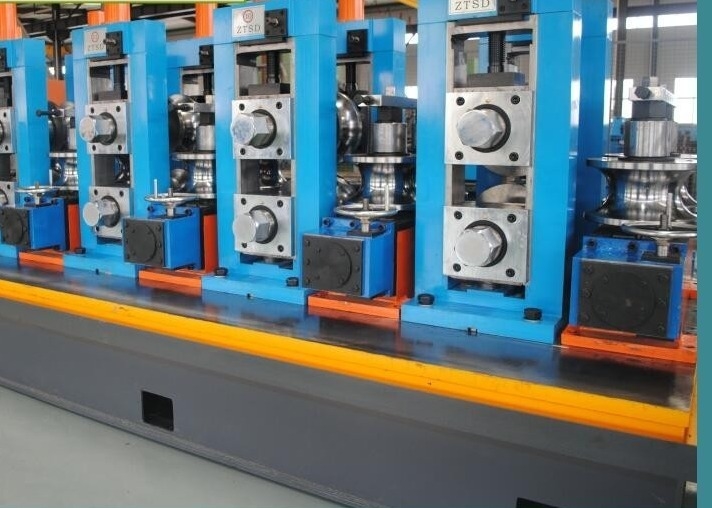

Fully Automatic HF Welding Square Tube Machine 21-63mm Diameter

Name: Fully Automatic HF Welding Square Tube Machine 21-63mm Diameter
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG76

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG76

Mill Name:

Hf Welding Square Tube Making Machine Fully Automatic Steel Pipe Production Line

Pipe Diameter:

21 - 63mm

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Cutting Saw:

Friction Saw Cutting

Worm Gearing:

Max.80m/min

Pipe Thickness:

4.0-10.0mm

Highlight:

High Light

Highlight:

63mm Square Tube Making Machine

50m/min Square Tube Making Machine

50m/min hf tube welding machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

3 months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

50 set per year

Product Description

HF Welding Square Tube Making Machine Fully Automatic Steel Pipe Production Line

Product Specifications

Attribute	Value
Mill Name	HF Welding Square Tube Making Machine Fully Automatic Steel Pipe Production Line
Pipe Diameter	21 - 63mm
Material	Carbon steel, stainless steel, low alloy steel
Cutting Saw	Friction Saw Cutting
Worm Gearing	Max. 80m/min
Pipe Thickness	4.0-10.0mm

Key Features

High-accuracy production with fully automatic operation
Capable of producing round, square, and rectangular pipes
Advanced solid-state high-frequency welder (300KW or 400KW)
High production speed: 30-100m/min
ISO9001/BV/CE certified for quality assurance
1-year warranty on core components (engine, gear)

Fully Automatic HF Welding Steel Square Tube Making Machine Pipe Mill

Technical Specifications

Applicable Industries: Manufacturing Plant, Machinery Repair Shops

Production Capacity: 30-120mm/min

Power: 350KW

Voltage: 380V

Dimensions: 100-160m (L) × 12m (W) × 8m (H)

Weight: 10-15t

Water Consumption: 50m³/h

Workshop Requirements: 50m × 12m × 6m (L×W×H)

Product Description

The HG76 High-Frequency Welded Pipe Production Line is designed to produce precision welded pipes of 12-76mm in diameter with wall thicknesses of 1-3.0mm, including square, rectangular, and deformed pipes of corresponding sizes.

This production line incorporates innovative design and advanced technology from domestic and international equipment, offering convenient operation and maintenance while achieving international leading standards.

Technical Details

Material Compatibility: Hot rolled or cold rolled steel strip (Low carbon steel and low alloy constructional steel, δs≤345Mpa, δb≤610Mpa)
Processing Range: Round pipe Φ12-Φ76mm | Square/Rectangular pipe 20x20-80x80mm
Wall Thickness: Round pipe: 1-3mm | Square/Rectangular pipe: 1-2.5mm
Installed Capacity: 800KVA
Forming Speed: 30-100m/min

Packaging & Delivery

Packaging: Seaworthy nude packing with steel wire and wood block for machine fixing, covered with dustproof plastic

Port: Tianjin port

Lead Time: 90 days for 1 set (negotiable for larger quantities)

Supply Ability: 150 sets per year
