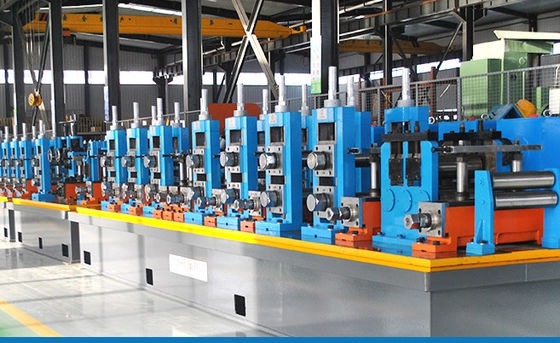

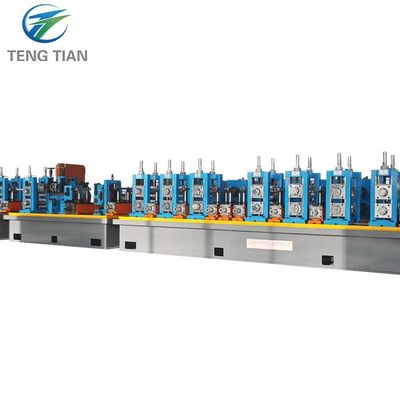

Galvanized Steel ERW Ms Square Pipe Making Machine

Galvanized Steel ERW Ms Square Pipe Making Machine
Galvanized Steel ERW Ms Square Pipe Making Machine Galvanized Steel ERW Ms Square Pipe Making Machine

Large Image :  Galvanized Steel ERW Ms Square Pipe Making Machine

Product Details:
Place of Origin: China
Brand Name: Tengtian
Certification: CE / ISO
Model Number: HG32
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable according to different sizes of machine
Packaging Details: Special export packing, and fixed in container
Delivery Time: 2 Months - 4 Months
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/Year
Detailed Product Description
Forming Method: Cold Roll Forming By Rollers Welding Type: High Frequency Welding
Cutting Saw: Cold Saw & Friction Saw Cutting Feature: High Precision; More Stable; High Speed;
Customized: Machine Designing As Per Customer Requirement Welding Speed: 30-120m/min
Raw Material: HRC, CRC, Galvanised Steel
High Light:

erw square pipe making machine

,

ERW Ms Square Pipe Making Machine


Carbon Steel , Stainless Steel And Galvanized Steel Square Pipe Making Machine



High speed ms pipe making machinery Fully automation high precision ERW tube mill

Product Description

The HG273 mill is used to manufacture of round pipe of Φ114mm-Φ273mm with thickness of 4.0mm-10mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.

The High precision tube mill has some advantages as follow:

between level roller jumps 0.01,between frame and slide clearance ≤0.02mm, frame vertical degree ≤0.05, each frame parallel degree ≤0.1mm
steel pipe diameter and roundness error≤0.08mm.

High precision gi steel pipe making machine

High precision gi steel pipe making machine



Product Process:

material(steel coil)→uncoiler→shear and welder→horizontal(or cage) accumulator→forming mill→

HF soild welder→sizing mill→rounghly straightening(turkey head)→cut off machine→run out table



The Basic Parameters:

stands of forming mill 7
stands of sizing mill 5
shaft material 40Cr
round pipe diameter 19-76mm
Round pipe thickness 1.5-3.0mm
square pipe size 15×15-60×60mm
square pipe thickness 1.5-2.0mm
we can design the machine according to the customer detail require.
ERW Tube Mill Other Model:
Model Diameter Range Pipe Thickness Line Speed(m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20
High precision gi steel pipe making machine

Applied raw material of erw pipe mill

Low carbon steel, low alloy steel, galvanized steel, stainless steel,etc.

Galvanized Steel ERW Ms Square Pipe Making Machine 3
