Product Details:
Payment & Shipping Terms:
|
| Model Number: | HG32/HG50/HG76/HG127/HG219 | Packaging Details: | Wooden Case |
|---|---|---|---|
| Voltage: | 380V/220V | Production Capacity: | 20-90m/min |
| Dimension(L*W*H): | 40mx6mx2m | Customized: | Machine Designing As Per Customer Requirement |
| Model: | ERW Welded Pipe Mill | Pipe Shape: | Rectangle, Round, Square |
| Material: | Carbon Steel | Power: | 200KW |
| High Light: | 200kw welded pipe production line,90m/min welded pipe production line |
||

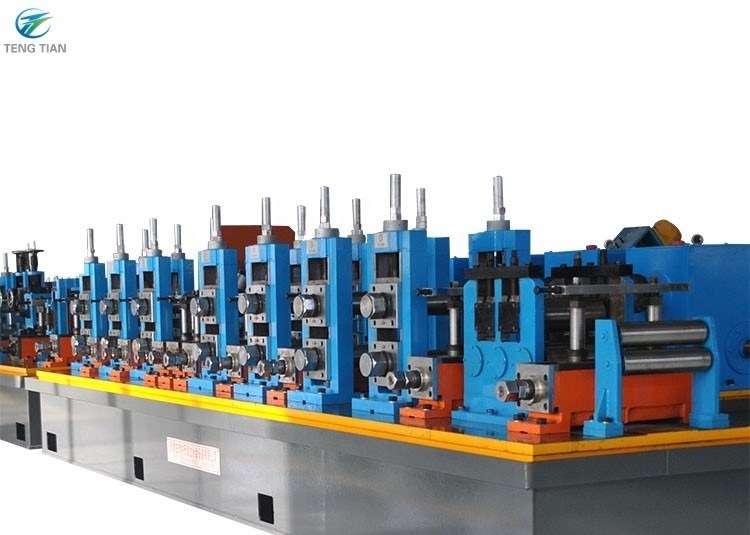

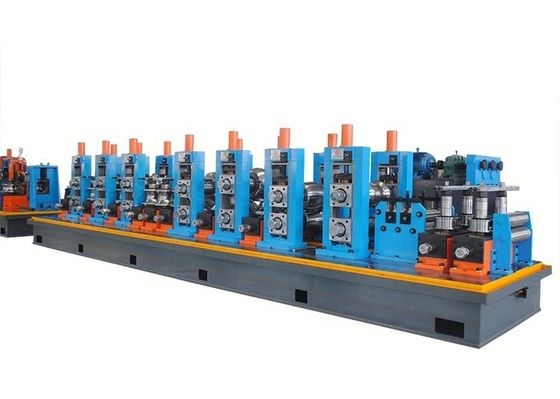

high frequency welded pipe production line/steel pipe making machine/second hand machine
HG426 High-Frequency Welded Pipe Production Line is designed to produce welded pipes of 273~426mm in diameter and 6.0~14.0mm in wall thickness as well as square and rectangular pipes and deformed pipes of the corresponding size.This production line’s each unit equipment, full use of the domestic and foreign similar equipment, innovative design, advanced technology, convenient operation and maintenance, and reached the international leading level.hs.
1. Adapt materials:
Hot rolled or cold rolled steel strip
Material : Low carbon steel and low alloy constructional steel
δs≤345Mpa δb≤610Mpa
2.Processing steel pipe size range:
(1)Processing range:Round pipe Φ273-Φ426mm.
Square&Rectangular pipe 200x200—350x350
(2)Thickness of Round pipe :6.0-14.0mm
Thickness of Square&Rectangular pipe :6.0-14.0mm
3.Installed capacity: 1500KVA
4.Water consumption: 80m3/h
5.Solid-state high-frequency Welder: 1000KW or 1200KW
6.Workshop Request:length, width and height 200-250m X 12m X 10m
7.Forming speed:20-30m/min
More Specification
| Model | Diameter(mm) | Thickness(mm) | Speed(m/min) | Main power(kw) | HF welder(KW) | Area(m2) |
| HG32 | 10-32 | 0.4-1.5 | 30-100 | 250 | 100 | 12x100 |
| HG50 | 12-50 | 0.6-2.5 | 30-90 | 300 | 150 | 12x100 |
| HG76 | 12-76 | 1-3 | 30-90 | 320 | 200 | 12x100 |
| HG89 | 32-89 | 1-4 | 30-80 | 350 | 300 | 12x100 |
| HG114 | 45-114 | 1.5-5.0 | 30-60 | 400 | 300 | 12x100 |
| HG165 | 60-165 | 3-7 | 30-50 | 600 | 400 | 12x100 |
| HG219 | 114-219 | 4-8 | 20-40 | 800 | 500 | 15x150 |
| HG273 | 114-273 | 4-10 | 15-30 | 1000 | 600 | 18x160 |
| HG325 | 165-325 | 4-10 | 10-30 | 1200 | 600 | 12x100 |
| HG426 | 165-426 | 4-12.7 | 8-25 | 1400 | 800 | 12x100 |
| HG508 | 219-508 | 4-16 | 8-20 | 2000 | 1000 | 12x100 |
