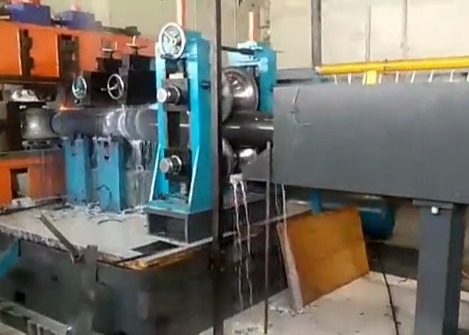

Straight Seam Welded Steel Square Tube Mill 0.8-4mm Thickness

Name: Straight Seam Welded Steel Square Tube Mill 0.8-4mm Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG178
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG178

Detail Information

Place of Origin:

Hebei，China

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG178

Mill Name:

Straight Seam Welded 0.8mm 50m/Min Steel Square Tube Mill

Mechanical Properties:

δs≤500Mpa δb≤345Mpa

Strip Width:

160-560mm

Strip Thickness:

0.8-4.0mm

Round Pipe Thickness:

0.8-4mm

Pipe Diameter:

50-178mm

Forming Speed:

20-50m/min

Material:

Low Alloy ，carbon Steel

Highlight:

High Light

Highlight:

straight seam steel tube mills

50m/min steel tube mills

0.8mm steel tube mills

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

120 work days

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

40 Sets/Year

Product Description

Straight Seam Welded 0.8mm 50m/Min Steel Square Tube Mill

Key Specifications

Attribute	Value
Mill Name	Straight Seam Welded 0.8mm 50m/Min Steel Square Tube Mill
Mechanical properties	δs≤500Mpa δb≤345Mpa
Strip Width	160-560mm
Strip Thickness	0.8-4.0mm
Round pipe thickness	0.8-4mm
Pipe Diameter	50-178mm
Forming Speed	20-50m/min
Material	Low alloy, carbon steel

Detailed Specifications

Material Specifications

Standard: Conforming to the YB189-64 standard
Material: Low carbon steel and low alloy constructional steel
Mechanical properties: δs≤500Mpa δb≤345Mpa
Strip Width: 160-560mm
Strip Thickness: 0.8-4.0mm
Inner Diameter of Coils: φ460～φ520mm
Outer Diameter of Coils: φ1800mm
Coil Weight: ≤8T

Pipe Specification

Pipe Diameter: Round pipe: 50-178mm | Square Pipe: 40*40-140*140mm
Thickness: 0.8-4mm
Length: 4-9m
Pipe-cutting Precision: 0-6mm
Forming Speed: 20-50m/min

Buyer Requirements

Work shop: 100x8m, H＞5m (crane to ground)
Power: Approx. 800KW 380V/50Hz/3phases
Circulation Cooling Water (whole system): Flow: 30T/h～40 T/h | Pool Volume: 60m³
Compressed Air: Flow: 5m³/min | 5-7kg/cm²

Note: Seller will supply complete equipment list for this steel square tube mill.
