Home > products >
Square Tube Mill
>

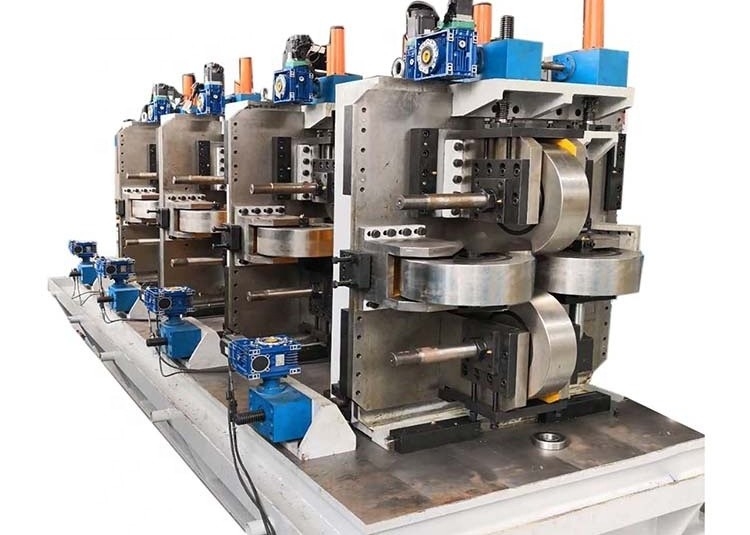

80X80mm Carbon Steel Square Tube Mill 30m/Min
80X80mm Carbon Steel Square Tube Mill 30m/Min
  • 80X80mm Carbon Steel Square Tube Mill 30m/Min
  • 80X80mm Carbon Steel Square Tube Mill 30m/Min

80X80mm Carbon Steel Square Tube Mill 30m/Min

Product Details:
Place of Origin: China
Brand Name: Tengtian
Certification: CE / ISO
Model Number: 200X200mm
Detail Information
Place of Origin:
China
Brand Name:
Tengtian
Certification:
CE / ISO
Model Number:
200X200mm
Forming Method:
Electric Welded Steel Pipe 80X80mm Square Tube Mill 30m/Min
Forming Method:
Electric Welded Steel Pipe 80X80mm Square Tube Mill 30m/Min
Welding Type:
Hebei, China (Mainland)
Cutting Saw:
Cold Saw & Friction Saw Cutting
Pipe Diameter:
80X80mm-200X200mm
Pipe Thickness:
5-16mm
Molding Speed:
20-30m/min
Material:
Carbon Steel
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops
Highlight:

High Light

Highlight:

80X80mm square tube mill

,

80X80mm square pipe mill

,

30m/min square tube mill

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Special export packing, and fixed in container
Delivery Time:
2 Months - 4 Months
Payment Terms:
T/T,L/C
Supply Ability:
100 Sets/Year
Product Description
Electric Welded Steel Pipe 80X80mm Square Tube Mill 30m/Min
Key Specifications
Attribute Value
Model Number 200X200mm
Place of Origin Hebei, China (Mainland)
Molding Speed 20-30m/min
Pipe Diameter 80X80mm-200X200mm
Pipe Thickness 5-16mm
Voltage 380V
Power 2000KW
Certification ISO9001, CE, BV
Pipe Shape Rectangle, Square
Material Carbon Steel, Stainless Steel, Galvanized Steel
Product Description

The Electric Welded Steel Pipe 80X80mm Square Tube Mill 30m/Min processes steel bands through a roll system that forms them into tube billets. Using high-frequency proximity and skin effects, the strip edges are instantly heated to welding temperature, then welded under pressure from squeezing rollers. The pipe then undergoes water cooling, sizing, and straightening to meet required specifications.

Production Process
  • Scroll up
  • Uncoil
  • Flattening
  • End Shear & Butt Welding
  • Accumulator
  • Forming
  • High-frequency induction welding
  • Removing external burr
  • Cooling
  • Sizing
  • Cutting
  • Checking & Collecting
  • Accessing Warehouse
80X80mm Carbon Steel Square Tube Mill 30m/Min 0
ERW Tube Mill Models
Model Diameter Range Pipe Thickness Molding Speed (m/min) Motor Power (KW) Mechanical Area (m³)
HG20 8-20MM 0.3-1MM 30-120 55 7×50
HG32 12-32MM 0.3-2.0MM 30-120 75 7×50
HG50 16-50MM 0.8-2.5MM 30-110 110 7×60
HG60 20-60MM 0.8-3MM 30-100 132 7×65
HG76 12-76MM 1-3MM 30-100 320 8×80
HG89 32-89MM 1-4MM 30-80 350 8×80
HG114 45-114MM 1.5-5.0MM 30-60 400 10×100
HG165 60-165MM 3-7MM 30-50 600 10×110
HG219 114-219MM 4-8MM 20-40 800 12×150
HG273 114-273MM 4-10MM 15-30 1000 18×160
HG325 165-325MM 4-12MM 10-30 1200 18×180
HG426 165-426MM 4-16MM 8-25 1400 18×180
HG508 219-508MM 4-20MM 8-20 2000 21×180
Our Services
  • On-site engineer for installation and operator training
  • One year quality guarantee with lifetime repair support
  • Pre-sale services including workshop and production output design
  • After-sale services including installation, training, and technical support
  • Option for extended engineer support (several months to 1 year)
  • Complete project design for stainless steel/carbon steel pipe production
  • Responsible for loading and shipping arrangements
80X80mm Carbon Steel Square Tube Mill 30m/Min 1 80X80mm Carbon Steel Square Tube Mill 30m/Min 2 80X80mm Carbon Steel Square Tube Mill 30m/Min 3
