320-800mm Steel Strip Square Tube Mill 80m/min Concrete Pipe Machine

Name: 320-800mm Steel Strip Square Tube Mill 80m/min Concrete Pipe Machine
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG32/HG50/HG76/HG114
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG32/HG50/HG76/HG114

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG32/HG50/HG76/HG114

Mill Name:

Steel Strip Width 320-800mm Concrete Pipe Making Machine 80m/Min Square Tube Mill

Warranty:

Video Technical Support, Online Support

Production Capacity:

30-80m/min

Power:

350KW

Weight:

>5T

Steel Strip Width:

320-800mm

Steel Strip Thickness:

3.0-12.7 Mm

Certification::

CE ISO9001

Highlight:

High Light

Highlight:

800mm concrete pipe making machine

320mm concrete pipe making machine

80m/min cement pipe making machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

Steel Strip Width 320-800mm Concrete Pipe Making Machine 80m/Min Square Tube Mill

Product Specifications

Attribute	Value
Mill Name	Steel Strip Width 320-800mm Concrete Pipe Making Machine 80m/Min Square Tube Mill
Warranty	Video technical support, Online support
Production Capacity	30-80m/min
Power	350KW
Weight	>5T
Steel strip width	320-800mm
Steel strip thickness	3.0-12.7 mm
Certification	CE ISO9001

Key Features

New condition pipe mill for carbon steel applications
Designed for energy supply pipe production
Production capacity of 1-10m/min
Automatic high frequency steel tube welding
Compatible with low carbon steel and low alloy constructional steel
Steel strip inner diameter: 480-580mm
Steel strip outer diameter: 800-1800mm
Fully automated operation
Includes workshop design services

Technical Details

Brand Name: TENGTIAN

Voltage: 220/380/415/420/440V

Power: 7.5KW

Dimensions: 30m*4m*5m

Weight: >2T

Warranty: 1 Year

After-sales Service: Online support, Engineers available to service machinery overseas

Supply Ability: 150 Set/Sets per Year

Packaging: Waterproof and seaworthy plywood case

Port: Tianjin Xingang CHINA or other major port in china

Product Description

Our full-automatic ERW steel tube mill/pipe mill line is the first full-automatic pipe making machine in China to meet international market requirements. Developed from our LW series unit combined with FF forming technology, this automatic square and rectangular tube equipment can produce various specifications of opening cold bend steel, including U and C section steel, with infinitely adjustable width and height.

Machine Components

Forming parts: Seven frame horizontal roll rack, four frame empty curving rack, four frame vertical roll rack, and one frame feeding rack
Welding parts: Five roller extruding roll, two frame scraping scar rack, and one frame polish rack
Sharping parts: Four frame four roller rack
Electric control part: Controlled by multipoint PLC control

Key Advantages

Rapid roller adjustment completion
Easy specification changes with simple adjustments
Reduced workforce requirements and labor costs
Extended equipment service life
Individual machine component repairability

Product Images

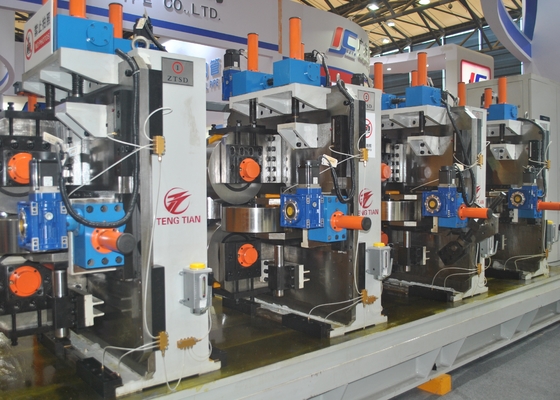

Automatic high frequency concrete pipe making machine

Machine components detail view

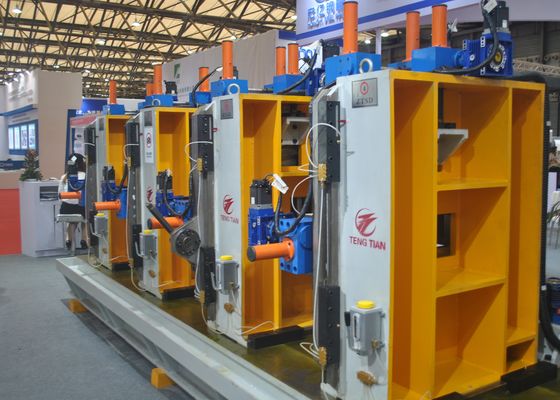

Complete machine assembly
