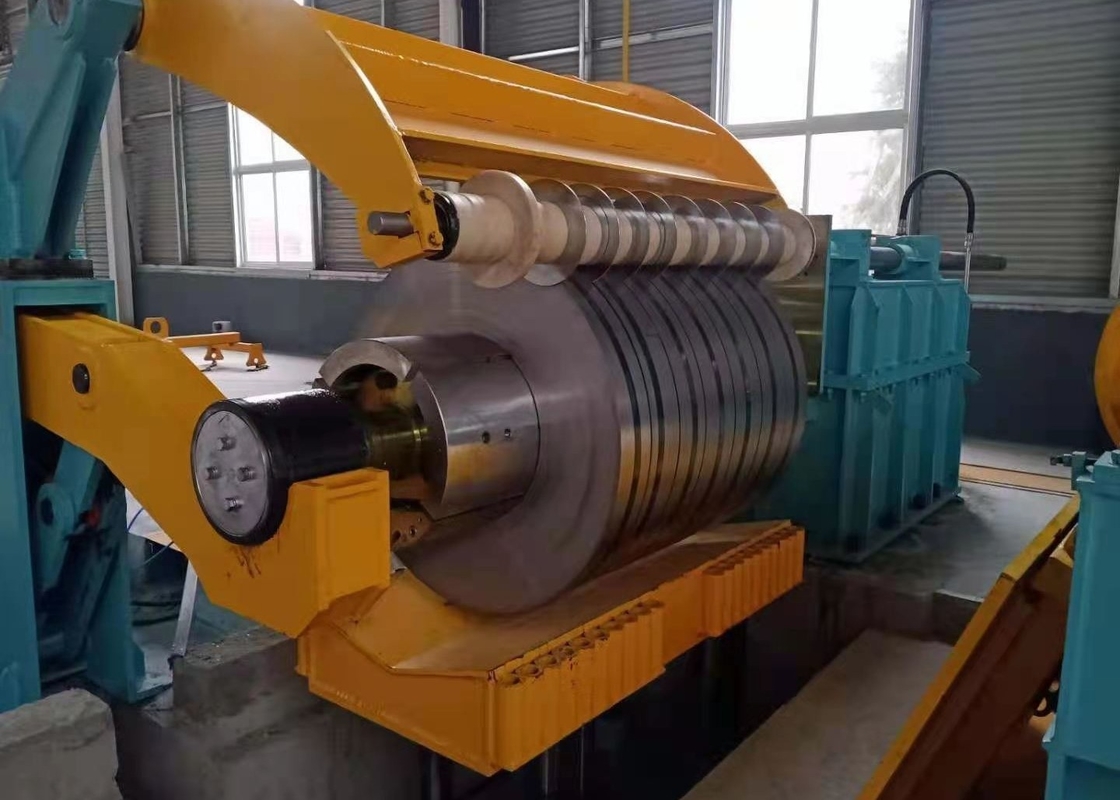

Steel Slitting Machine 0.5-4.0mm 90-120m/min 380V

Name: Steel Slitting Machine 0.5-4.0mm 90-120m/min 380V
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: ZTL 0.5-4X1600mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	ZTL 0.5-4X1600mm

Detail Information

Place of Origin:

Hebei，China

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

ZTL 0.5-4X1600mm

Mill Speed:

90-120m/min

Warranty:

1 Year

Voltage:

380V/220V

Weight:

Max 30 Ton

Steel Coil Weight (T):

24000kg

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Coil Width:

300-1600mm

Material Thickness:

0.5～4.0mm

Highlight:

High Light

Highlight:

0.5mm metal sheet slitting machine

0.5mm steel plate cutting machine

120m/min metal sheet slitting machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

120 work days

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

40 Sets/Year

Product Description

Steel Plate Cutting 0.5mm Metal Sheet Slitting Machine 120m/Min

Key Specifications

Attribute	Value
Mill speed	90-120m/min
Warranty	1 Year
Voltage	380V/220V
Weight	Max 30 Ton
Steel coil weight (T)	24000kg
After-sales Service	Engineers available to service machinery overseas
Coil Width	300-1600mm
Material Thickness	0.5～4.0mm

Technical Parameters

Material Specifications

Material: Low carbon HRC (Q235, σs=250Mpa, σb=500Mpa)
Coil Thickness: 0.5～4.0 mm
Coil Width: 300-1600mm
Coil Weight: ≤20 t
Inner diameter: Φ508/610
Outer diameter: ≤Φ1800mm

Finished Product Specifications

Coil weight: 20t
Inner diameter: Φ508mm
Outer diameter: Φ1800mm
Width precision: ±0.10 mm (thickness 0.5-3.0), ±0.20 mm (thickness 3.1-4.0)
Burr accuracy: ≤5% Plate thickness (0.08-0.20mm)
Coils open speed: 90-120m/min

Equipment Data

Power:
- Voltage: 380V
- Frequency: 50HZ
- Installed power: Approx.330kw
Air power:
- Pressure: 0.4-0.6Mpa
- Air demand: 0.2m³/min (State of compression)
Line direction: Face the operation console, Left to Right
