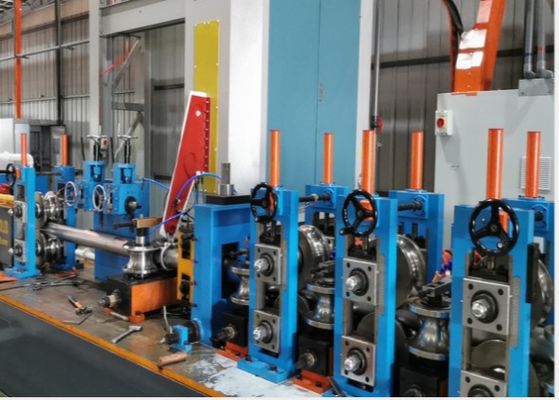

16-63mm Diameter High Precision Assembling Erw Tube Mill

16-63mm Diameter High Precision Assembling Erw Tube Mill
16-63mm Diameter High Precision Assembling Erw Tube Mill 16-63mm Diameter High Precision Assembling Erw Tube Mill

Large Image :  16-63mm Diameter High Precision Assembling Erw Tube Mill

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG219
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Export waterproof and Seaworthy packing.
Delivery Time: 60 work days
Payment Terms: L/C, T/T
Supply Ability: 50 Sets/Year
Detailed Product Description
Yield Strength Of Raw Material: σs≤340Mpa Tensile Strength Of Raw Material: σb≤520 Mpa
Thickness: 2.0-4.0mm Max. Production Speed: 20~80m/min
Fixed Cutting Length: 6-12m Pipe Size Range: φ16~φ63mm
Warranty: One Year Welding Type: High Frequency Welding
High Light:

precision welded tube mill

,

16mm diameter erw tube mill

,

high precision assembling erw tube mill









  • Material Specifications:

Conforming to the YB189-64 standard

(1)Material: Low carbon steel and low alloy constructional steel

(2)Mechanical properties: σb≤520Mpa,σs≤340MPa

(3)Strip Width:50~200mm

(4)Strip Thickness:2.0~4.0mm

(5)Steel strip coil:Inner Diameter of Coils:φ480~φ520mm

Outer Diameter of Coils:φ1000~φ1800mm

(6)Coil Weight:≤2T

  • Main specifications of welding pipe products:

(1)Round Pipe Diameter:φ16~φ63mm

(2)Wall Thickness of Pipes:2.0~4.0mm

(3)Fixed Cutting length:4~12m

(4)Pipe-cutting Precision:0~3mm

  • Forming Speed

20~80m/min

  • Power, Water & Air Supply:

(1)Power:

Power Volume of the Line Approx.600KW

Power Source 380V/50Hz/3phases

(2)Circulation Cooling Water:

Flow:30T/h~40 T/h

Pool Volume:60m3

(3)Compressed Air

Flow:5m3/min

Pressure:5~7kg/ cm2

  • Workshop:

8m wide, 100m long, at least 5m high from Ceiling Rails to Ground.



  • Delivery Terms:

- Shipment within 4 months after receipt of down payment



  • Payment Terms:

- 30%: The total amount of down payment shall be paid by T/T to the Seller within 15 days after the signature of the Contract. The Contract then comes into effect.

- 70%: Before shipment by L/C .



  • Quality and Service Warranty

Pre-sales service:

·We can provide pictures of the finished equipment before shipment to ensure the authenticity of our products.

·If the government does not allow the seller to leave China and go to the customer's country for equipment debugging, we will provide online remote guidance to the buyer’s engineer, and do seller’s best to provide a clear and complete layout to help the buyer with equipment installation and commissioning.

·If the Chinese government can allow the seller to leave China and go to the customer's country for equipment debugging, we will send engineers there as described below:

Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer.

The debugging time is one month,within one month The buyer need pay for the engineer salary EUR 150.00 one day one person,the supply the atrtickets for round trip,also need supply the local cost,like food, rooms and transform.If due to the buyer reason,delay the debugging time,the buyer need pay for the engineer EUR 150.00 one person one day.

Number of equipment commissioning engineers:At least three.

After-sales service:

Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.The debugging time is one month,within one month The buyer need pay for the engineer salary EUR 150.00 one day one person,the supply the atrtickets for round trip,also need supply the local cost,like food, rooms and transform.If due to the buyer reason,delay the debugging time,the buyer need pay for the engineer EUR 150.00 one person one day.

Number of equipment commissioning engineers:At least three.





  • Technical Document Provided

●Instruction Manual (provided at the time of a month before delivery time)

●Inspection Certificate (provided at the delivery time)

●Loading Order (Provided at the delivery time)

●Layout Drawing (provided at the time of a month before delivery time)

●Ground Base Drawing (provided at the time of a month before delivery time)

●Electrical Principle Diagram

●Overall Assembly Drawing of every unit of the line

●Part Diagram of Vulnerable Parts
